Automatic L-Type and Straight Edge Banding Machine HELEX HE 60 EL

The HELEX HE 60 EL represents a professional, heavy-duty woodworking solution designed specifically for door and specialized panel production where edges require complex profiling rather than a simple flat strip. Built with a rigid, cage-type body structure from laser-cut, powder-coated steel plates, this industrial machine ensures low-vibration operation and long-term mechanical stability. Operating at an adjustable feed speed of 6 to 13 m/min, the machine processes panels from 10 mm up to 60 mm in thickness. It features a complete sequence of 15 advanced working stations that handle dual-surface pre-milling, precise gluing, servo-controlled tape application, multi-stage pressing, and adaptive trimming in a single automated pass. Every drive group within the machine is inverter or servo-controlled, allowing operators to adjust parameters instantly via the intuitive touchscreen interface instead of making slow, mechanical adjustments. Whether processing standard melamine-faced chipboard, MDF, plywood, or solid wood panels, the HELEX HE 60 EL adapts seamlessly to both straight and L-type edge banding (0.6 – 0.8 mm tape thickness). Its purpose-built adaptive trimming and scraping modules feature mechanical anti-impact protection, ensuring perfect fillet precision trimming on complex door shapes, leaving every finished panel ready for immediate installation.

Key Advantages:

• 15-Station Single-Pass Processing: Automatically sequences dual milling, release agent spraying, gluing, servo pressing, adaptive trimming, scraping, and polishing for maximum factory throughput.

• Specialized L-Type & Straight Profiling: Built purposefully for T-type doors, parent-child doors, hidden doors, and architectural background wall panels with perfect fillet precision.

• Anti-Chipping Pre-Milling Unit: Equipped with two heavy-duty 5.5 kW counter-rotating inverter motors that flawlessly prepare the panel edge and prevent any material chipping.

• Servo-Synchronized Tape Feed: Features a smart servo belt tape feed that stays perfectly synchronized with the main conveyor speed for exact tape alignment.

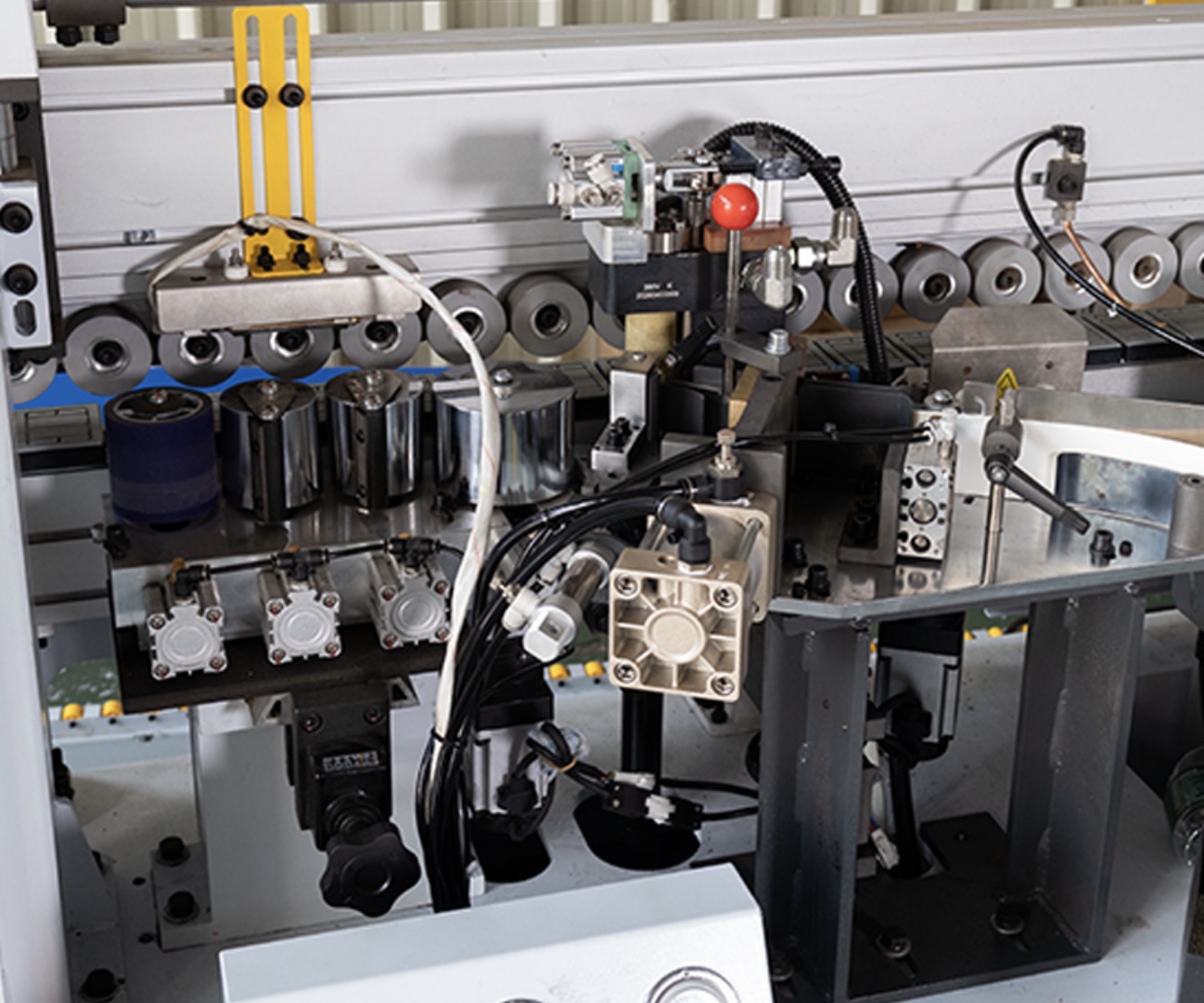

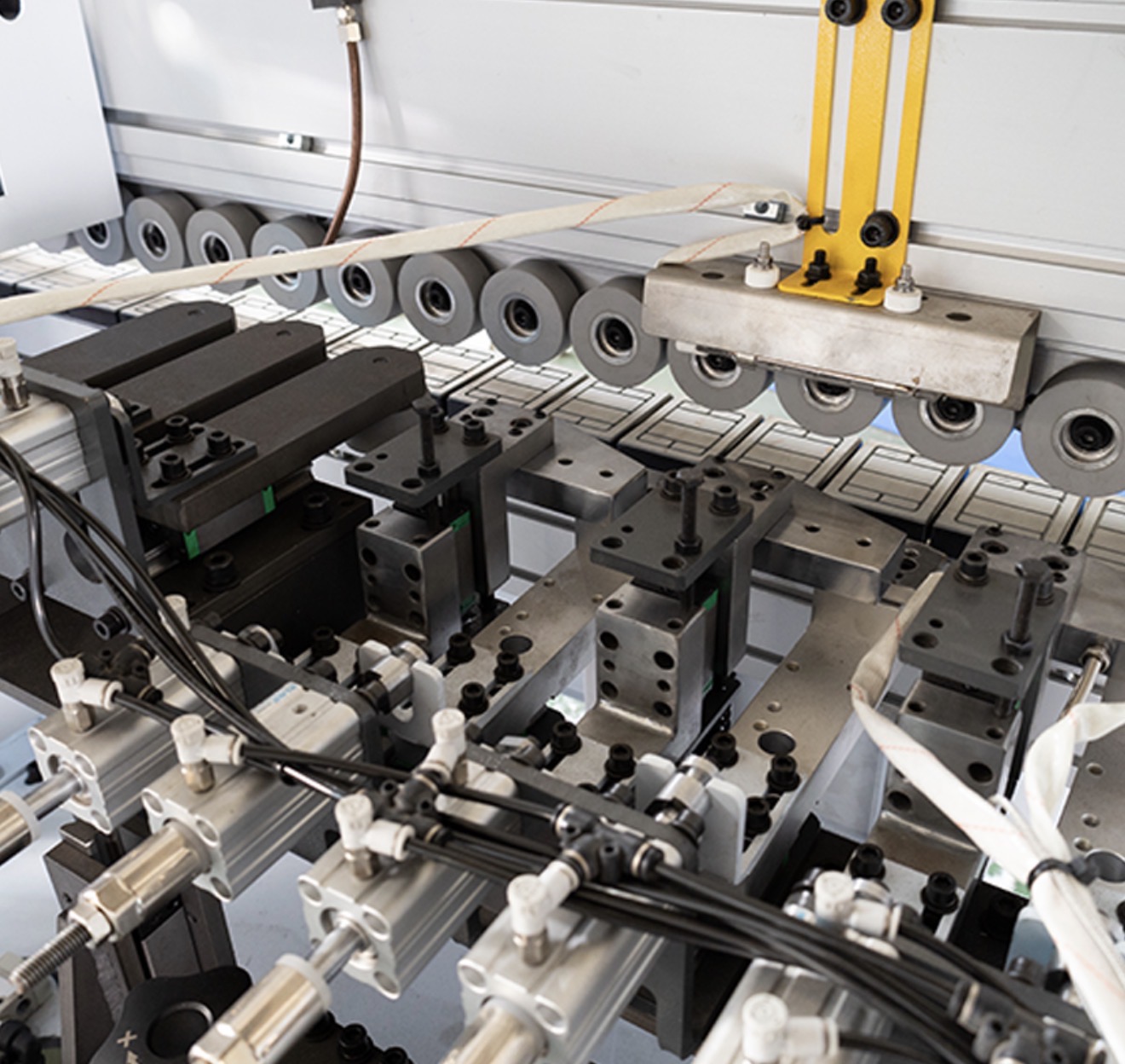

• Advanced Floating Press System: Combines a four-wheel servo pressing zone with three vertically floating forming presses (the first being heated) to maintain constant pressure on profiled faces.

• Dual-Agent Protection: Automatically sprays a release agent before gluing to keep panel surfaces clean, and a cleaning agent before polishing to completely dissolve glue residue.

• Full Digital Control: Motorised pressure beam lift, operating temperatures, station selection, and feed speeds are all managed directly from the central operator touch screen.

• Industrial Build Quality: Features a robust cage-type chassis, an electrophoretically treated aluminum pressure beam, and a heavy-duty 20A single-row feed chain with 60 rubber pressure wheels for a straightness of 0.20 mm / 1000 mm.
