Weinig Unimat Four-Side Planer Moulder (6 Spindles)
The Weinig Unimat 23 is a heavy-duty industrial four-side planer moulder engineered for high-precision wood processing and continuous production. Renowned for its structural rigidity , this woodworking machine delivers flawless surface finishing, superior squaring and high-capacity timber profiling
Specifications
- Working width
- 230 mm
- Working thickness
- 170 mm
- No. of spindles
- 6 pcs
- Motor power
- 50 kw
- Working speed
- 6-24 m/min
- Infeed table length
- 1700 mm
- Dimmensions
- 4900 x 2400 x 2000 mm
- Weight
- 3500 kg
Description
This industrial 6-spindle four-side planer moulder is built for demanding woodworking environments that require absolute accuracy and long-term durability. Engineered to handle continuous, high-volume production, the Unimat effortlessly combines planing, squaring, and advanced profiling operations into a highly efficient, single-pass process.
Key Advantages:
• Legendary Weinig Reliability: Built with a massive, heavy-duty cast-iron frame that eliminates vibrations, ensuring unmatched stability and microscopic precision even during intense industrial shifts.
• High-Speed Precision Finishing: Operating at 8,000 RPM, the high-performance spindles deliver a premium, mirror-smooth surface finish on all four sides of the timber simultaneously.
• Effortless & Flexible Feeding: Equipped with a robust cardan drive shaft system and pneumatic pressure rollers, ensuring smooth, non-slip timber feeding across a wide range of wood densities and dimensions.
• Rapid Setup & Reduced Downtime: Features motorized thickness adjustments and electric positioning for the top horizontal spindles, allowing operators to change profiles and dimensions in seconds.
• Superior Infeed & Outfeed Control: A comprehensive system of multiple driven steel toothed rollers and rubber-coated outfeed rollers guarantees flawless material handling from start to finish.
Technical Specifications:
• Spindle Diameter: 40 mm • Spindle Speed: 8,000 RPM • Number of Spindles: 6 (all adjustable up/down, left/right)

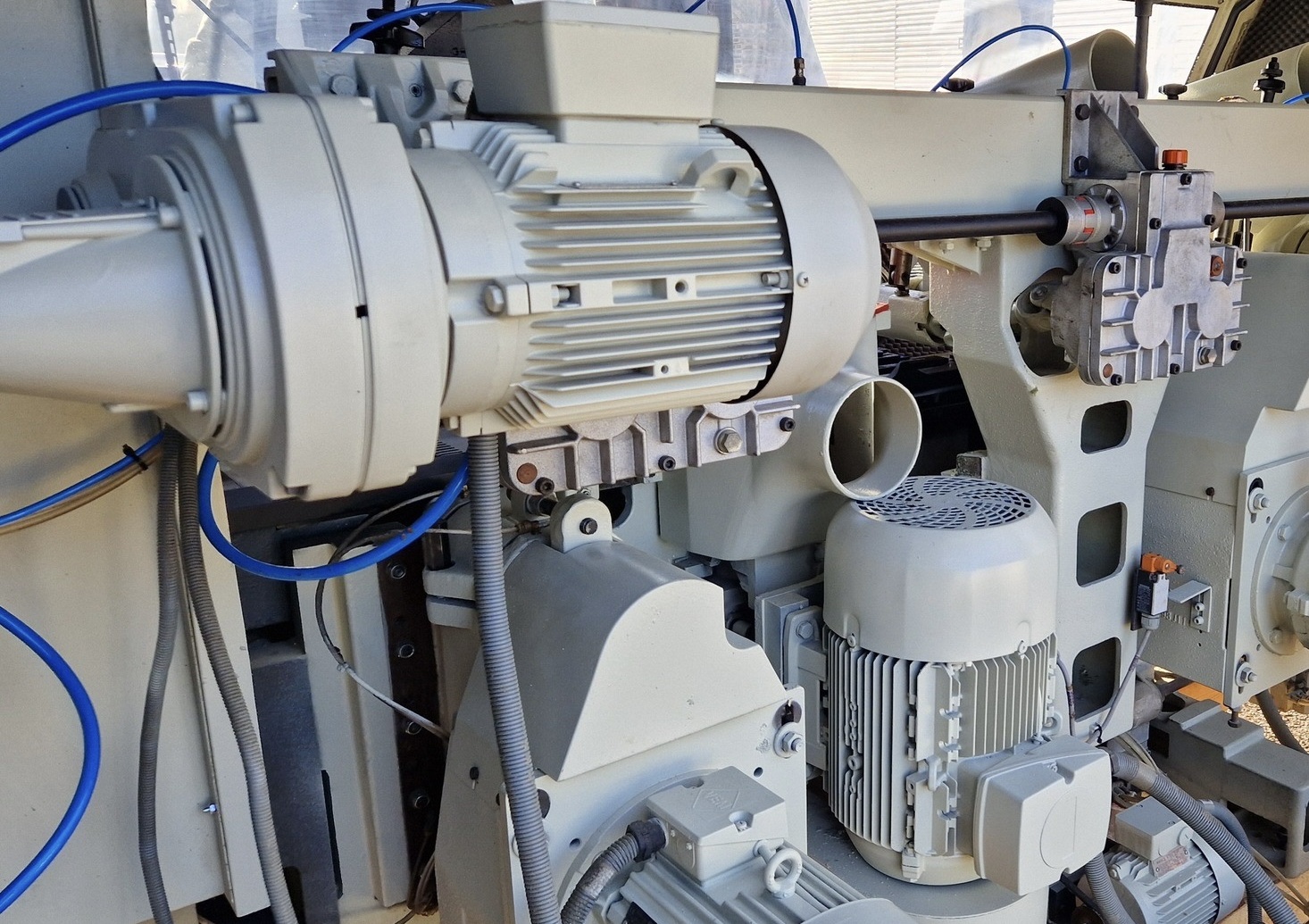

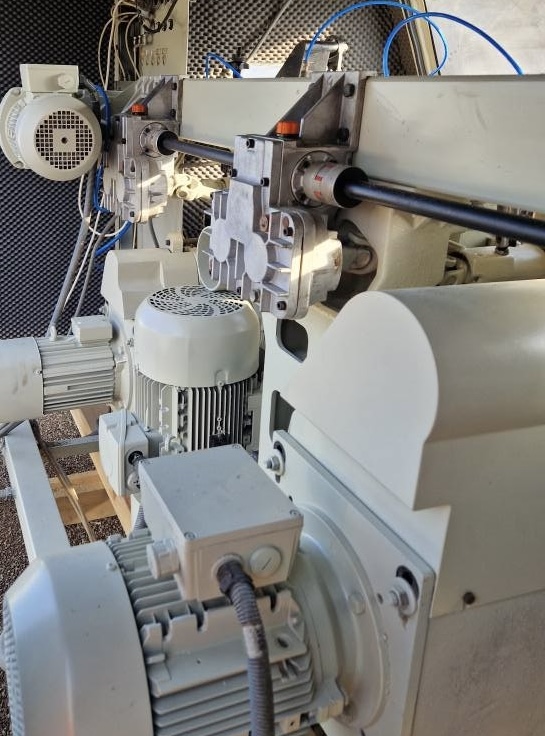

Spindle Configuration & Motor Power:
• 1st Spindle: Horizontal bottom – 5.5 kW • 2nd Spindle: Vertical right (combined 11 kW with 3rd spindle) • 3rd Spindle: Vertical left (combined 11 kW with 2nd spindle) • 4th Spindle: Horizontal top – 7.5 kW (motorized up/down adjustment) • 5th Spindle: Horizontal top – 5.5 kW (motorized up/down adjustment) • 6th Spindle: Horizontal bottom – 11 kW
Feeding & Pressure System:
• Feed Speed: variable from 6 to 24 m/min • Feed Motor Power: 4.0 kW • Drive Type: Cardan drive shaft system

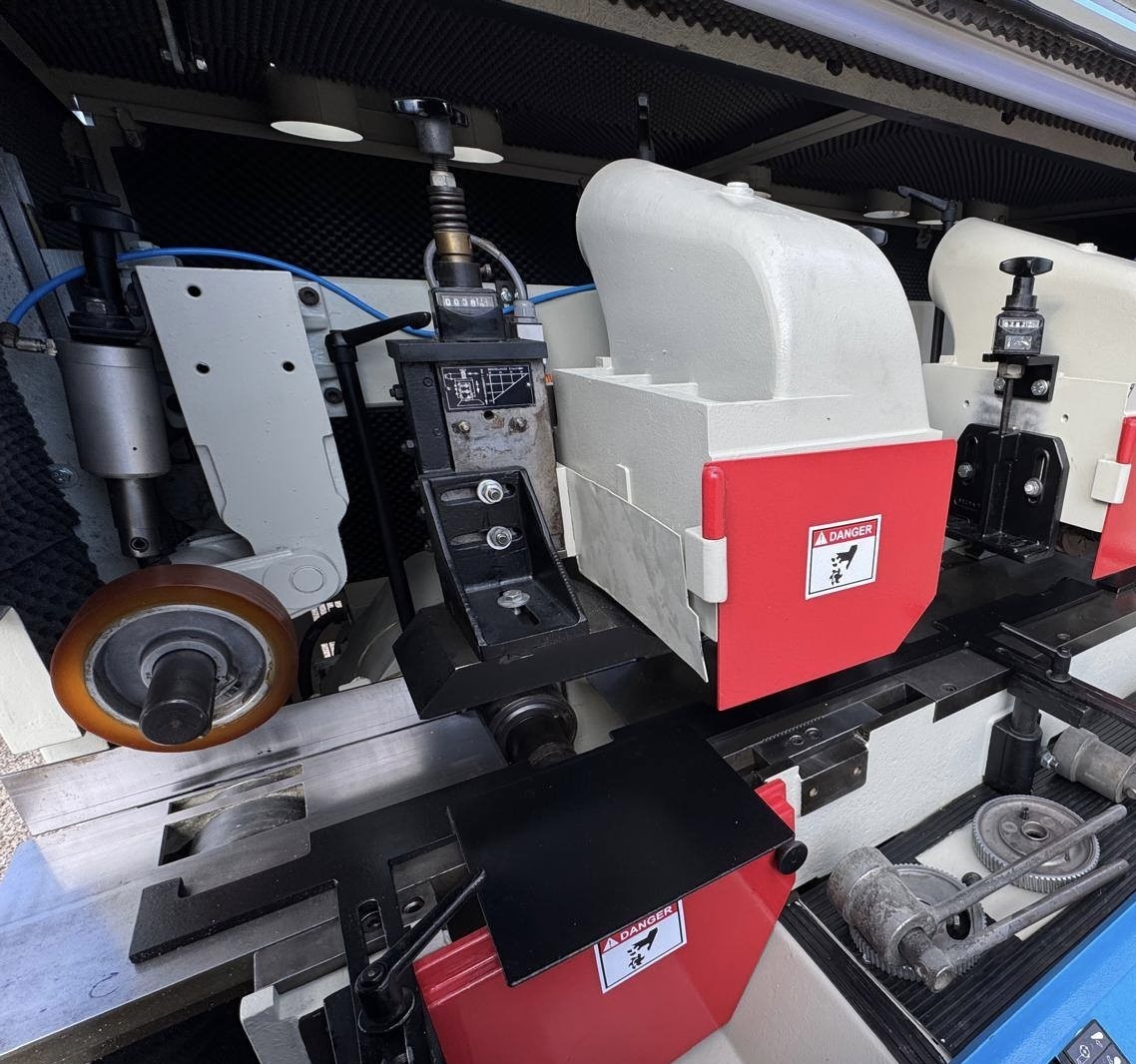

Pressure Type:

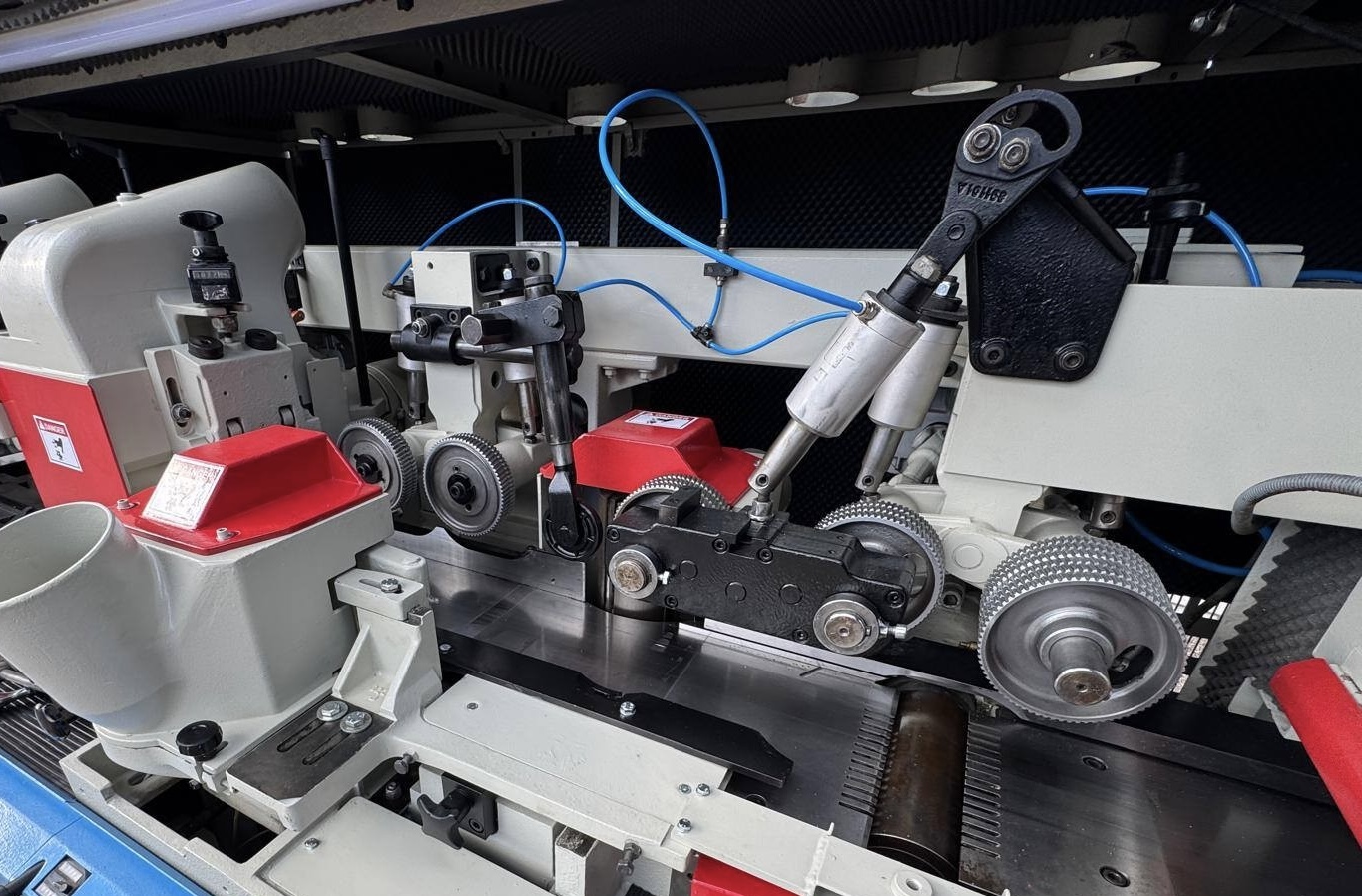

• Pneumatically pressured rollers • Top Infeed: 6 driven, toothed infeed rollers (including 1 double roller) • Top Outfeed: 1 driven, rubber-coated double outfeed roller • Bottom Outfeed: 1 driven, rubber-coated double outfeed roller • Side Pressure: Lateral side pressure guide included
Ergonomics & Structure:
• Thickness Adjustment: Motorized/electric planing thickness setting • Body Lifting Motor: 0.55 kW • Bed Lubrication: Centralized bed lubrication system •Dust Extraction Ports: 6 x 140 mm diameter outlets
Frequently asked questions
What warranty is available for Weinig Unimat Four-Side Planer Moulder (6 Spindles)?
Warranty availability for Weinig Unimat Four-Side Planer Moulder (6 Spindles) is confirmed in the individual commercial offer. The exact coverage and conditions depend on the machine, its configuration and whether it is new or used. Contact ProMach Machinery for the current warranty terms applicable to this specific unit before ordering.
What is the delivery time for Weinig Unimat Four-Side Planer Moulder (6 Spindles)?
Contact us for the current lead time for Weinig Unimat Four-Side Planer Moulder (6 Spindles). Delivery timing depends on machine availability, final configuration, destination and transport requirements. ProMach Machinery coordinates delivery and installation planning with the customer, and the confirmed schedule is stated in the individual commercial offer.
Are installation, commissioning and operator training available for Weinig Unimat Four-Side Planer Moulder (6 Spindles)?
Yes, installation, commissioning and operator training are available for Weinig Unimat Four-Side Planer Moulder (6 Spindles), subject to the agreed project scope. The ProMach team can coordinate positioning, mechanical and electrical assembly, calibration, production tests and initial operator training so the machine is handed over ready for safe operation.
Are spare parts, service and technical support available for Weinig Unimat Four-Side Planer Moulder (6 Spindles)?
Yes, ProMach Machinery provides spare parts, service and technical support for the machines it sells. Support for Weinig Unimat Four-Side Planer Moulder (6 Spindles) can include preventive maintenance, diagnostics, repairs, wear components, compatible or original parts and sub-assemblies, according to the machine and the agreed service scope.
Is Weinig Unimat Four-Side Planer Moulder (6 Spindles) suitable for my materials and production requirements?
Suitability must be confirmed against your material, product and required output. For Weinig Unimat Four-Side Planer Moulder (6 Spindles), review the published specifications, including Working width: 230 mm; Working thickness: 170 mm, then send ProMach Machinery your material details, dimensions, target capacity and process requirements. The team will verify the configuration before preparing an offer.
