Used Edgebander Modell 1440 Homag

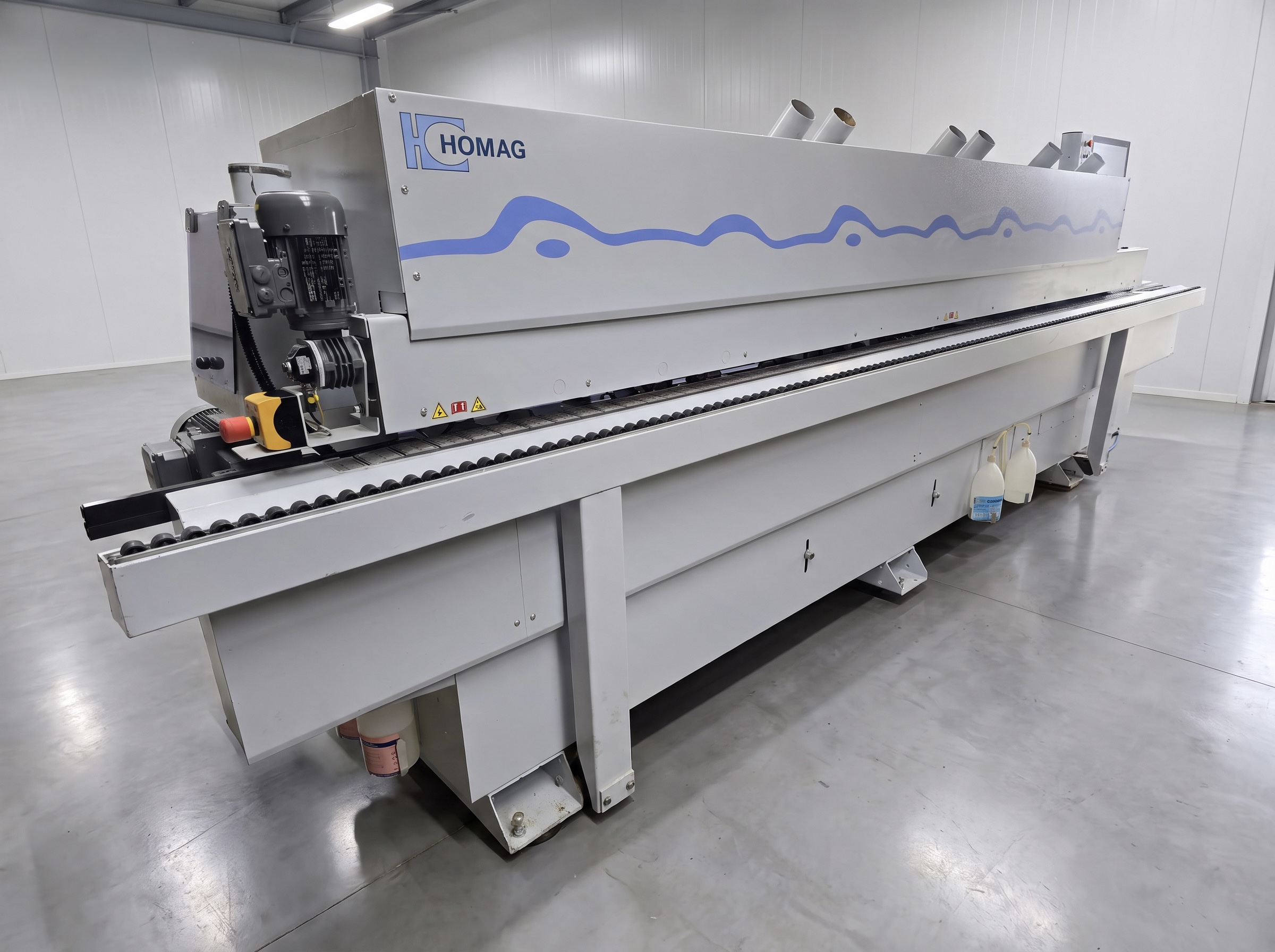

Used Homag 1440 edgebander. Professional woodworking machine for industrial edge banding.
Specifications
- Panel thickness
- 0,4-3 mm
- Edge thickness
- 60 mm
- Speed
- 8-14 m/min
- Glue pot capacity
- 2 Kg
- Min. panel length
- 160 Mm
- Dimensions
- 5200x1300x2100 Mm
- Weight
- 1850 Kg
Description
This industrial used Homag 1440 edgebander delivers professional edge processing for woodworking shops. The machine features full NC control directly from the main panel for automated aggregate adjustments. It is configured to handle a maximum element height of 60mm and roll edge thickness up to 3mm. Equipped with a high-performance nesting package, it processes components with pre-drilled holes accurately. The feed system operates up to 14 m/min, adjusting to 11 m/min during corner rounding operations. This machine is in very good condition for a used industrial unit.

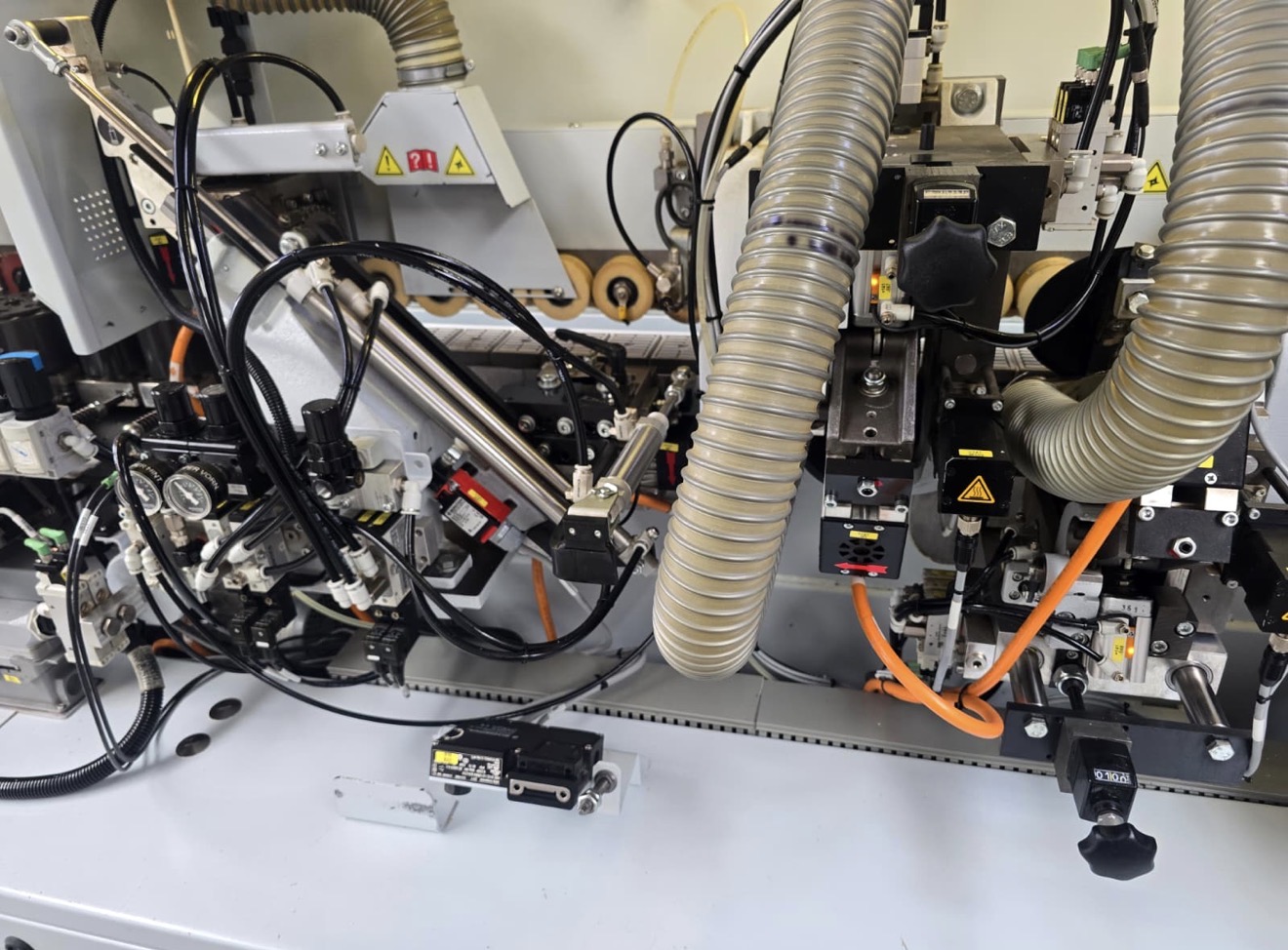

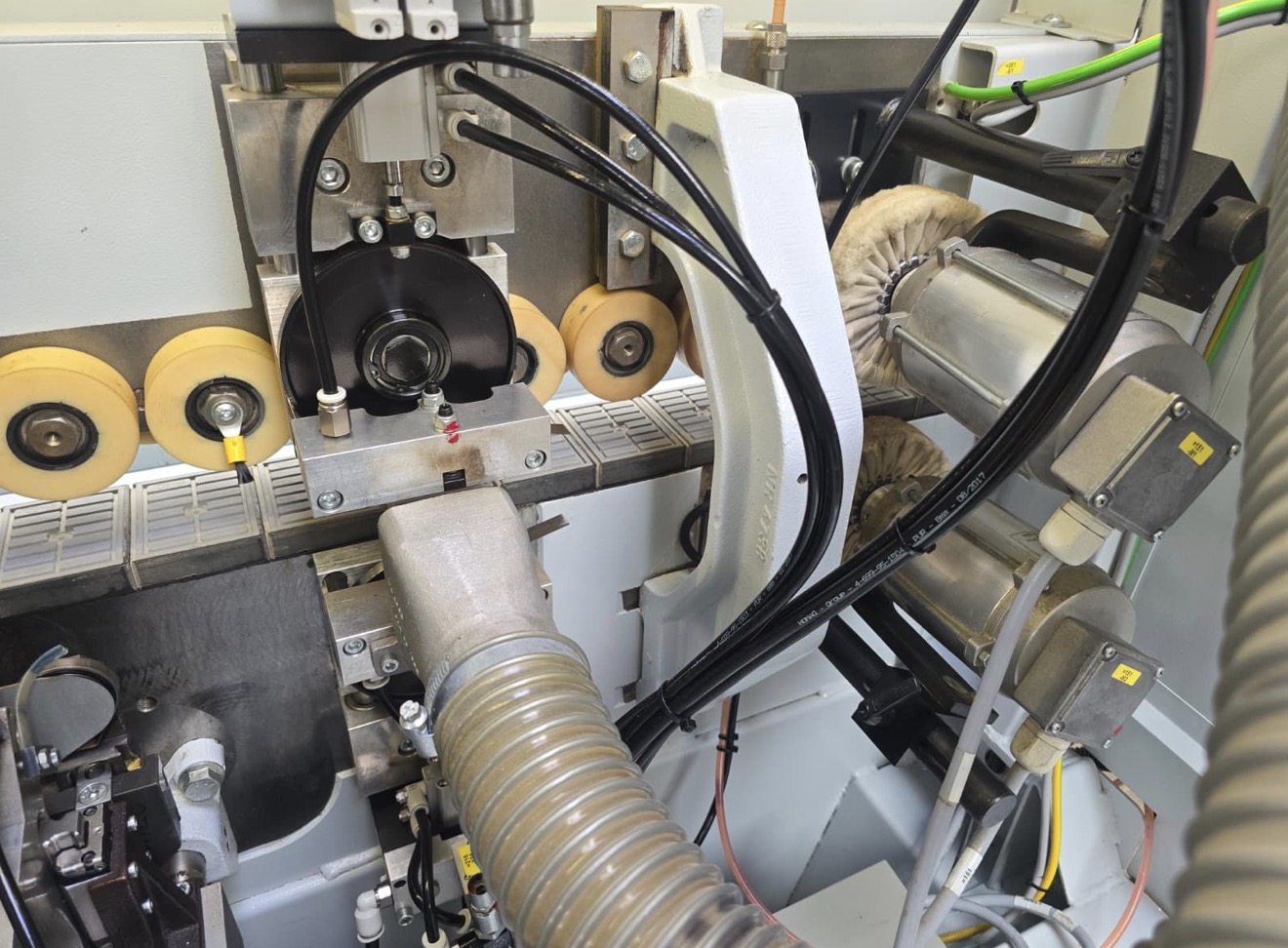

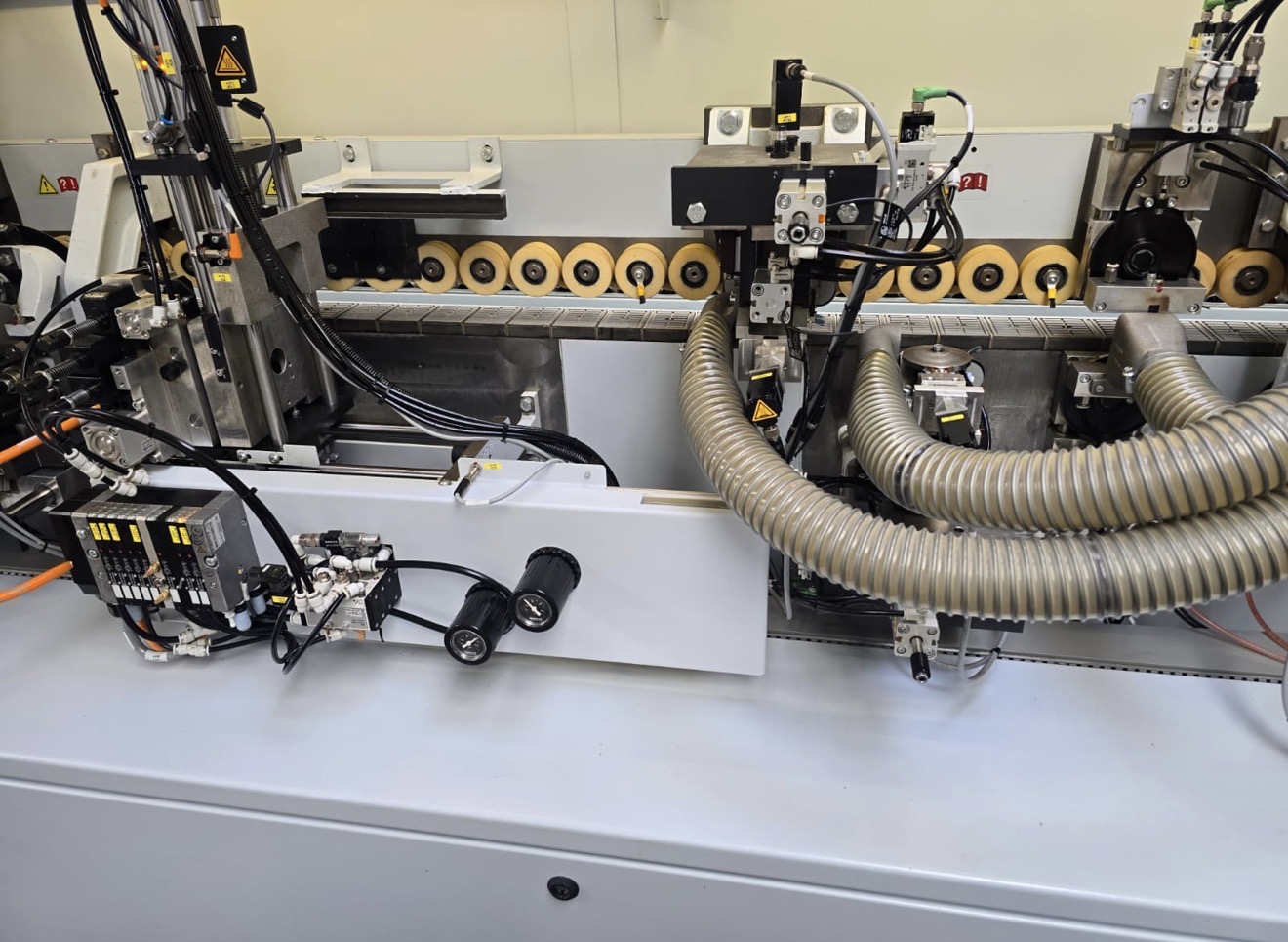

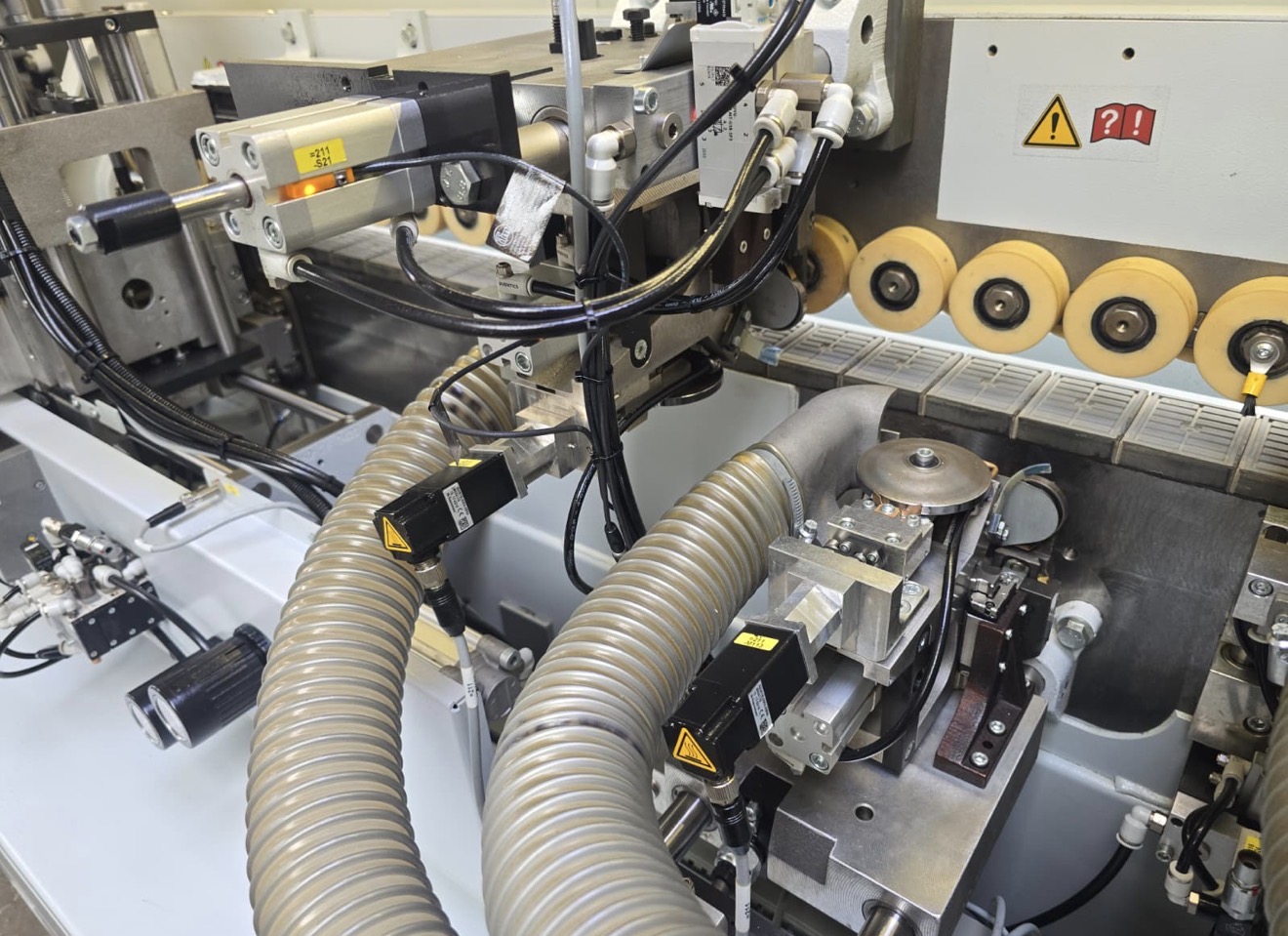

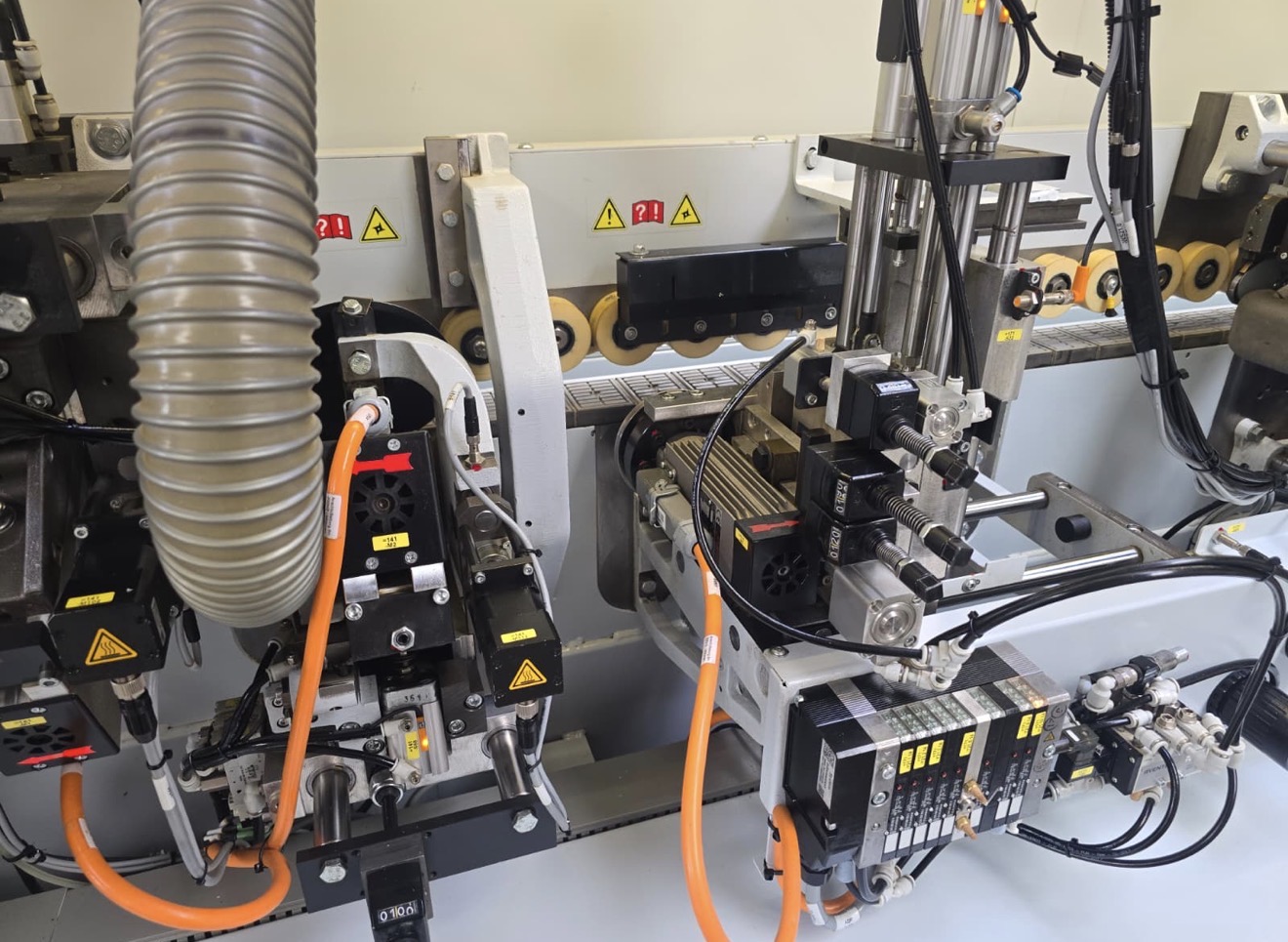

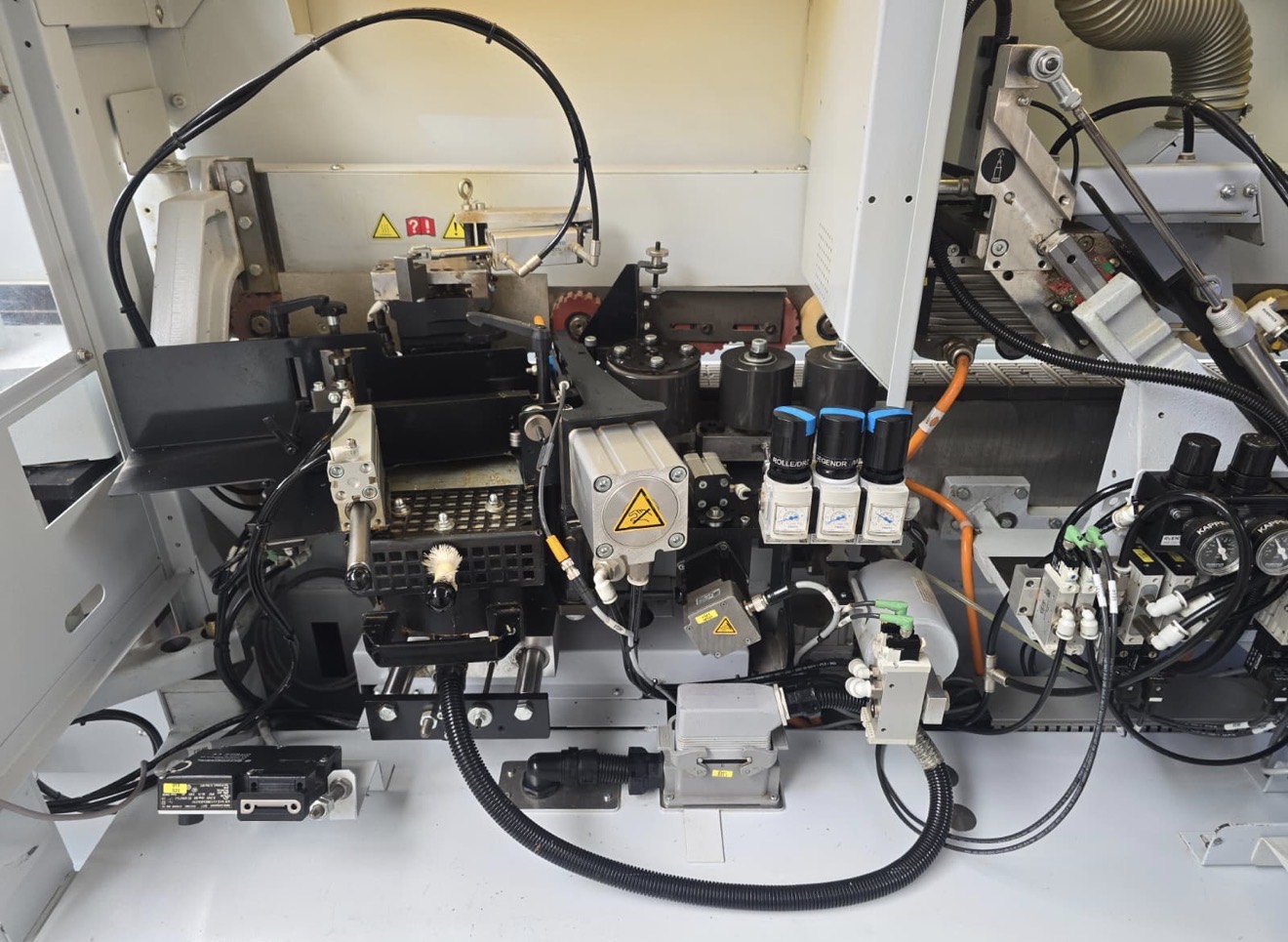

The configuration includes a comprehensive liquid spray system for optimal surface protection and cleaning. The gluing unit utilizes a precise roller application system and comes complete with a secondary glue pot for fast color or glue type transitions. Material preparation is handled by a heavy-duty pre-milling unit and integrated panel pre-heating. Edge finishing is executed by a pneumatic pre-cutting guillotine, heavy pressure rollers, precision end-trimming saws, and a multi-profile top-bottom milling aggregate. The final surface detailing is completed by a dedicated corner rounding unit, multi-profile scrapers, flat scrapers, and a heavy-duty buffing unit.
* Full NC Control: Automated adjustment of working aggregates directly from the main control panel reduces setup times. * Pre-Milling and Pre-Heating: Integrated joint trimming cutters and panel heating guarantee clean, gap-free glue joints. * Dual Glue Pots: Complete secondary glue container included for rapid switching between different adhesive types or colors. * Multi-Profile Finishing: Multi-functional top-bottom milling, corner rounding, and profile scrapers handle R1 and R2 radiuses. * Nesting Package: Specialized tracking system allows trouble-free processing of panels with hinge holes or complex cutouts. * Complete Processing Stations: Configured with pneumatic guillotine, end-trimming saws, flat scrapers, liquid sprays, and buffing rollers. * Variable Feed Speed: Strong transport system delivers up to 14 m/min standard speed and 11 m/min during corner rounding.
Frequently asked questions
What warranty is available for Used Edgebander Modell 1440?
Warranty availability for Used Edgebander Modell 1440 is confirmed in the individual commercial offer. The exact coverage and conditions depend on the machine, its configuration and whether it is new or used. Contact ProMach Machinery for the current warranty terms applicable to this specific unit before ordering.
What is the delivery time for Used Edgebander Modell 1440?
Contact us for the current lead time for Used Edgebander Modell 1440. Delivery timing depends on machine availability, final configuration, destination and transport requirements. ProMach Machinery coordinates delivery and installation planning with the customer, and the confirmed schedule is stated in the individual commercial offer.
Are installation, commissioning and operator training available for Used Edgebander Modell 1440?
Yes, installation, commissioning and operator training are available for Used Edgebander Modell 1440, subject to the agreed project scope. The ProMach team can coordinate positioning, mechanical and electrical assembly, calibration, production tests and initial operator training so the machine is handed over ready for safe operation.
Are spare parts, service and technical support available for Used Edgebander Modell 1440?
Yes, ProMach Machinery provides spare parts, service and technical support for the machines it sells. Support for Used Edgebander Modell 1440 can include preventive maintenance, diagnostics, repairs, wear components, compatible or original parts and sub-assemblies, according to the machine and the agreed service scope.
Is Used Edgebander Modell 1440 suitable for my materials and production requirements?
Suitability must be confirmed against your material, product and required output. For Used Edgebander Modell 1440, review the published specifications, including Panel thickness: 0,4-3 mm; Edge thickness: 60 mm, then send ProMach Machinery your material details, dimensions, target capacity and process requirements. The team will verify the configuration before preparing an offer.
