Thicknesser Bauerle
The Bäuerle thicknesser is a premium, heavy-duty industrial planing machine engineered from solid cast iron for ultra-stable, high-volume timber dimensioning.
Specifications
- Working width
- 630 mm
- Working height
- 220 mm
- Max. depth of cut
- 8 mm
- Motor power
- 5,5 kw
- Weight
- 1000 kg
Description

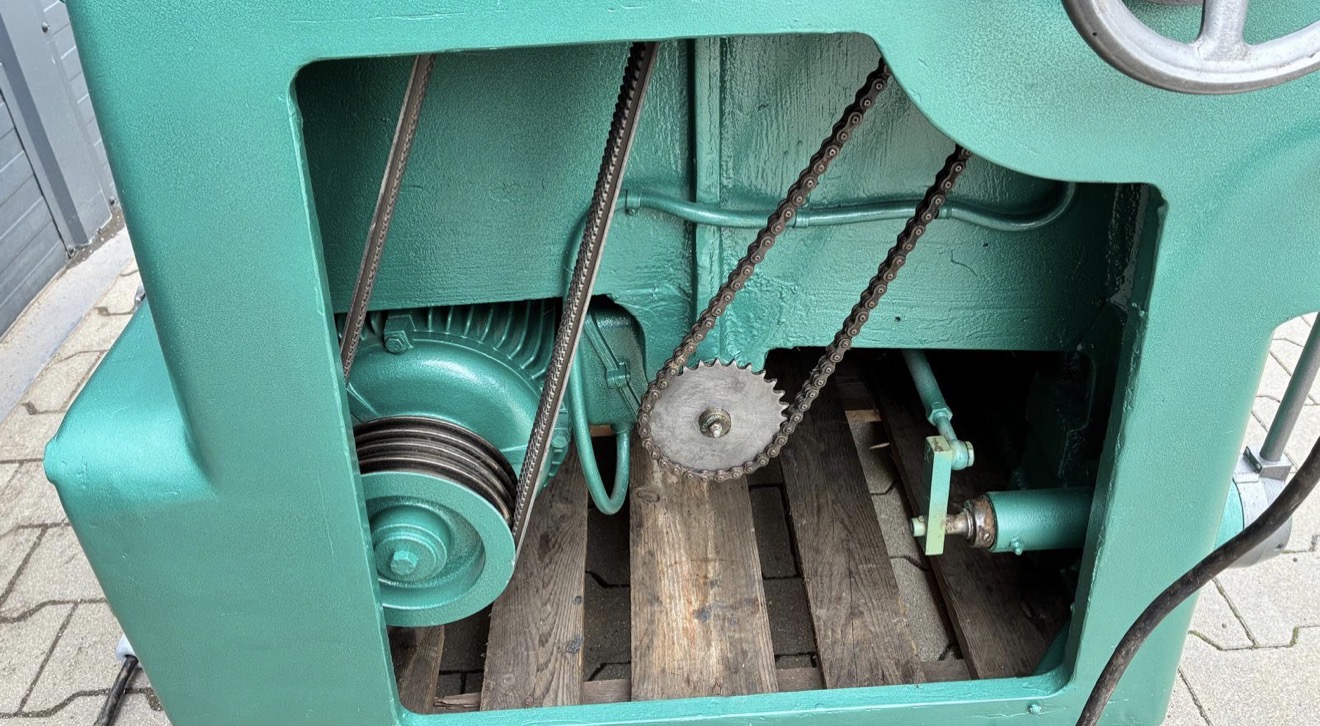

These machines are powered by heavy-duty 3-phase electric motors ranging from 5 kW to 5.5 kW (approx. 7.5 HP), providing high-torque processing capacity even when planing dense hardwoods at maximum capacity.
Key AdvantagesIndestructible Cast Iron Body:
•Heavy industrial grey cast iron construction guarantees maximum stability and completely vibration-free cutting, translating to pinpoint dimensional accuracy.

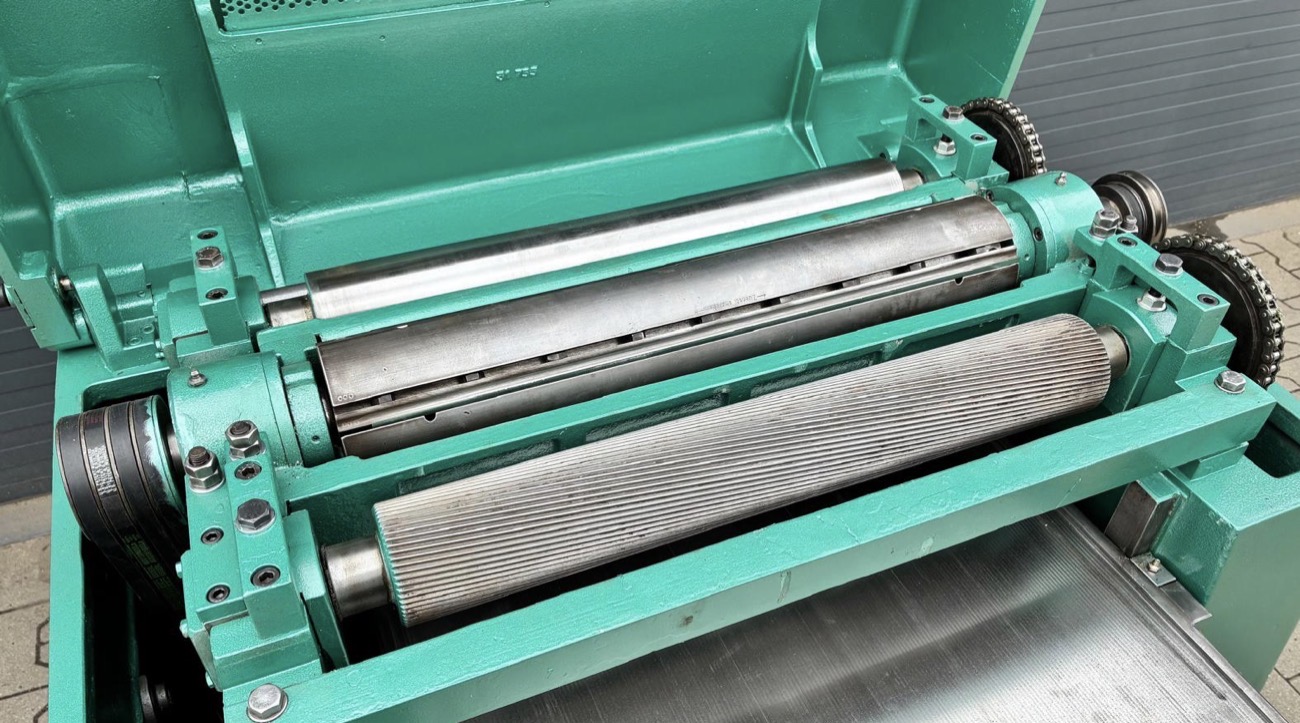

•Industrial-Grade 4-Knife Cutterhead: The high-speed 4-knife configuration (5,500 RPM) creates an ultra-smooth finish, requiring minimal downstream sanding.

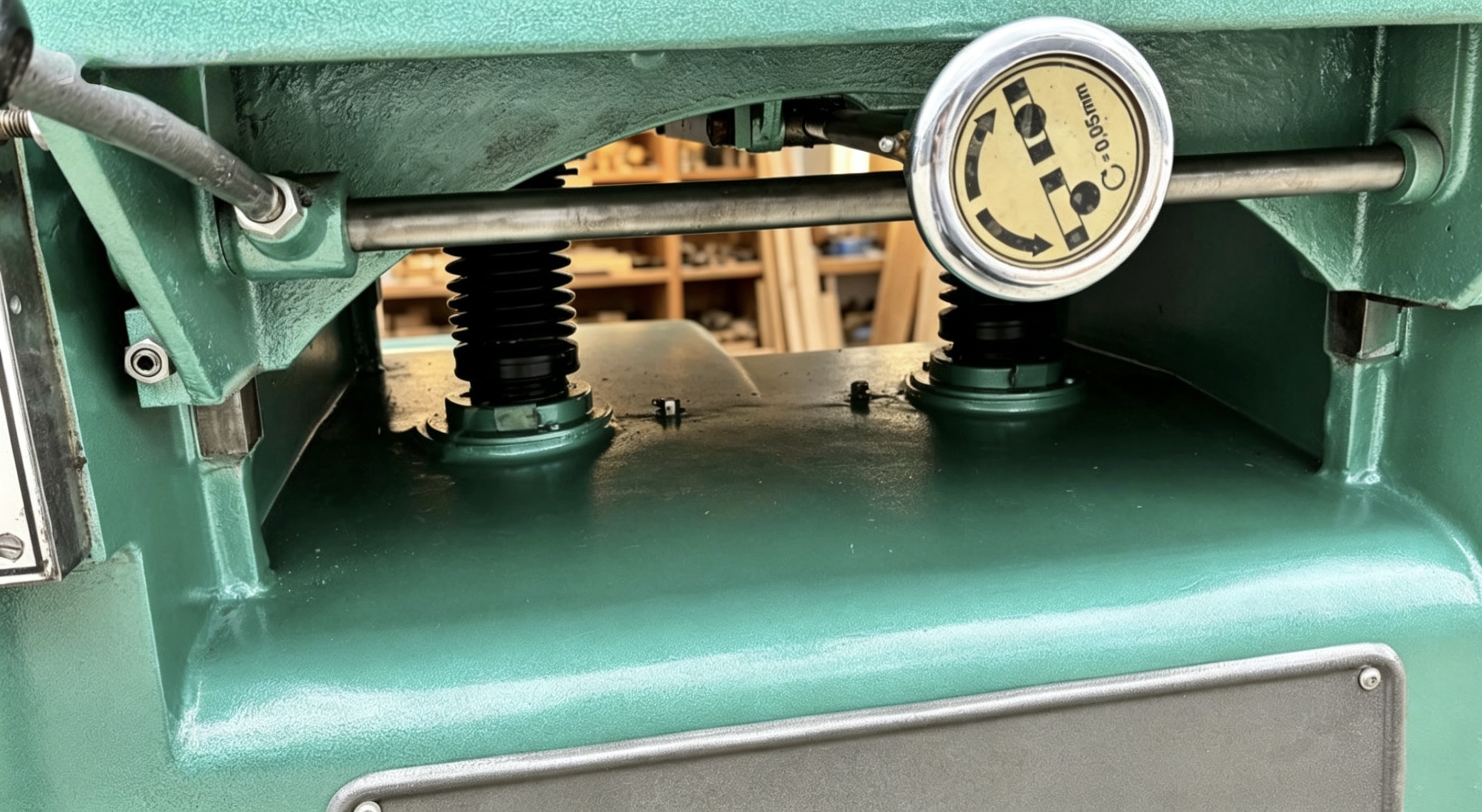

•Anti-Sag Parallel Table Alignment: Dual heavy-duty elevation spindles prevent the thicknessing bed from sagging or tilting when feeding oversized timber.

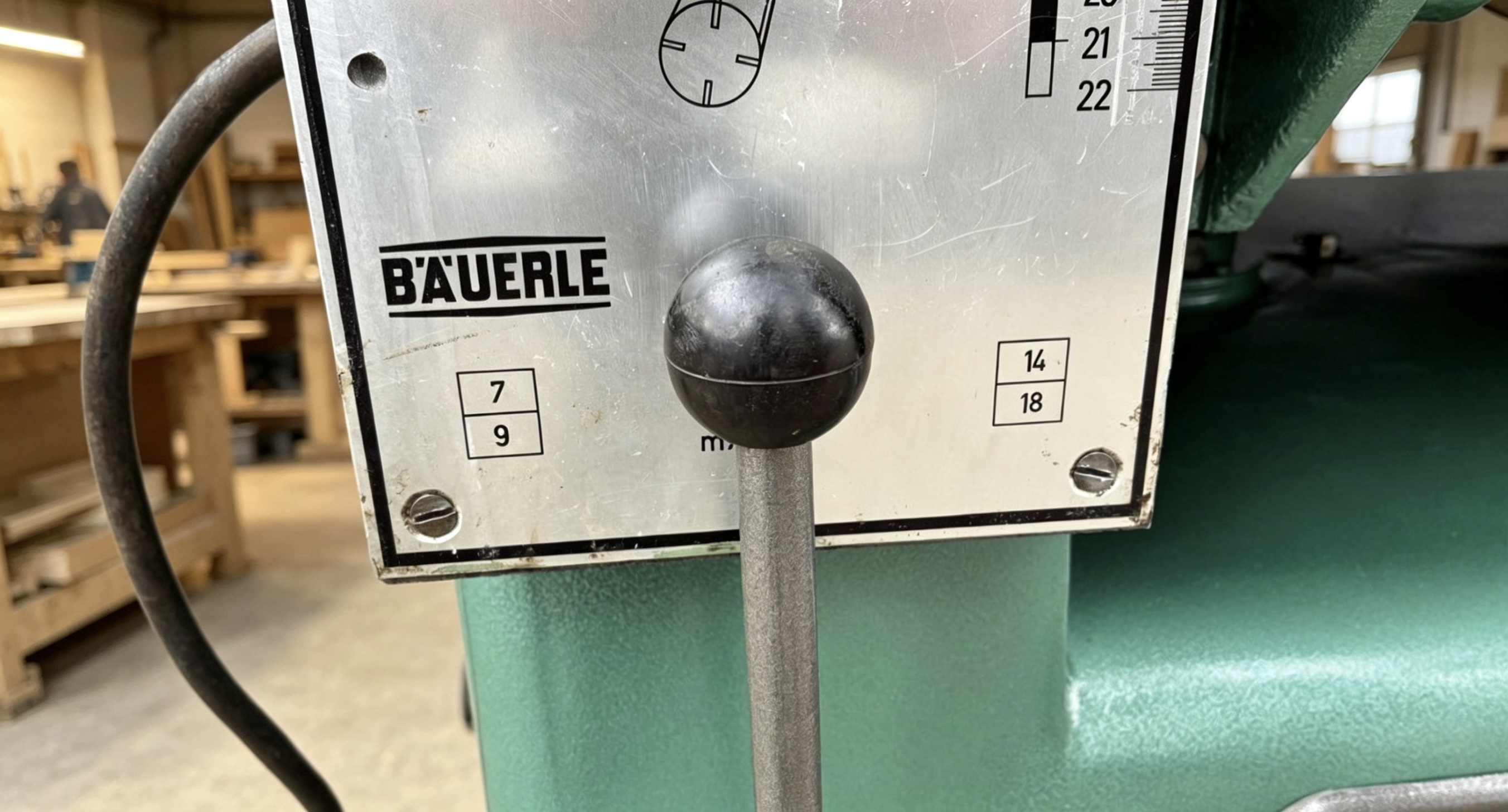

•Multi-Speed Gearbox Feed System: Equipped with up to 4 selectable feed speeds (ranging from 7 to 18 m/min) to optimize feed rates for either fast roughing or slow, fine finishing cuts.
•Anti-Sag Parallel Table Alignment: Dual heavy-duty elevation spindles prevent the thicknessing bed from sagging or tilting when feeding oversized timber.
•Table Bed Sliding Rollers: Integrated adjustable guide rollers within the main table surface significantly reduce friction and prevent damp or sappy boards from sticking.
