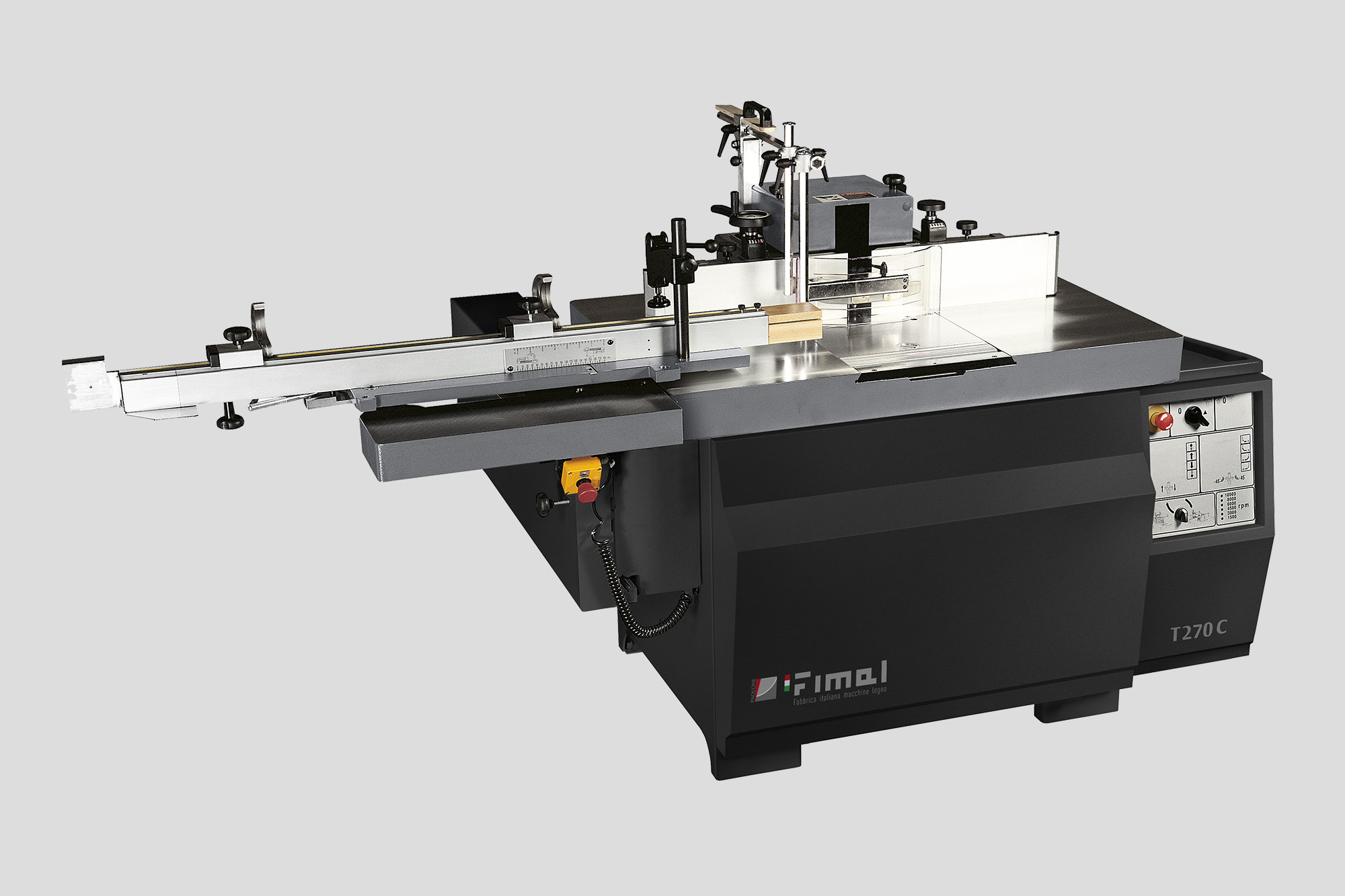

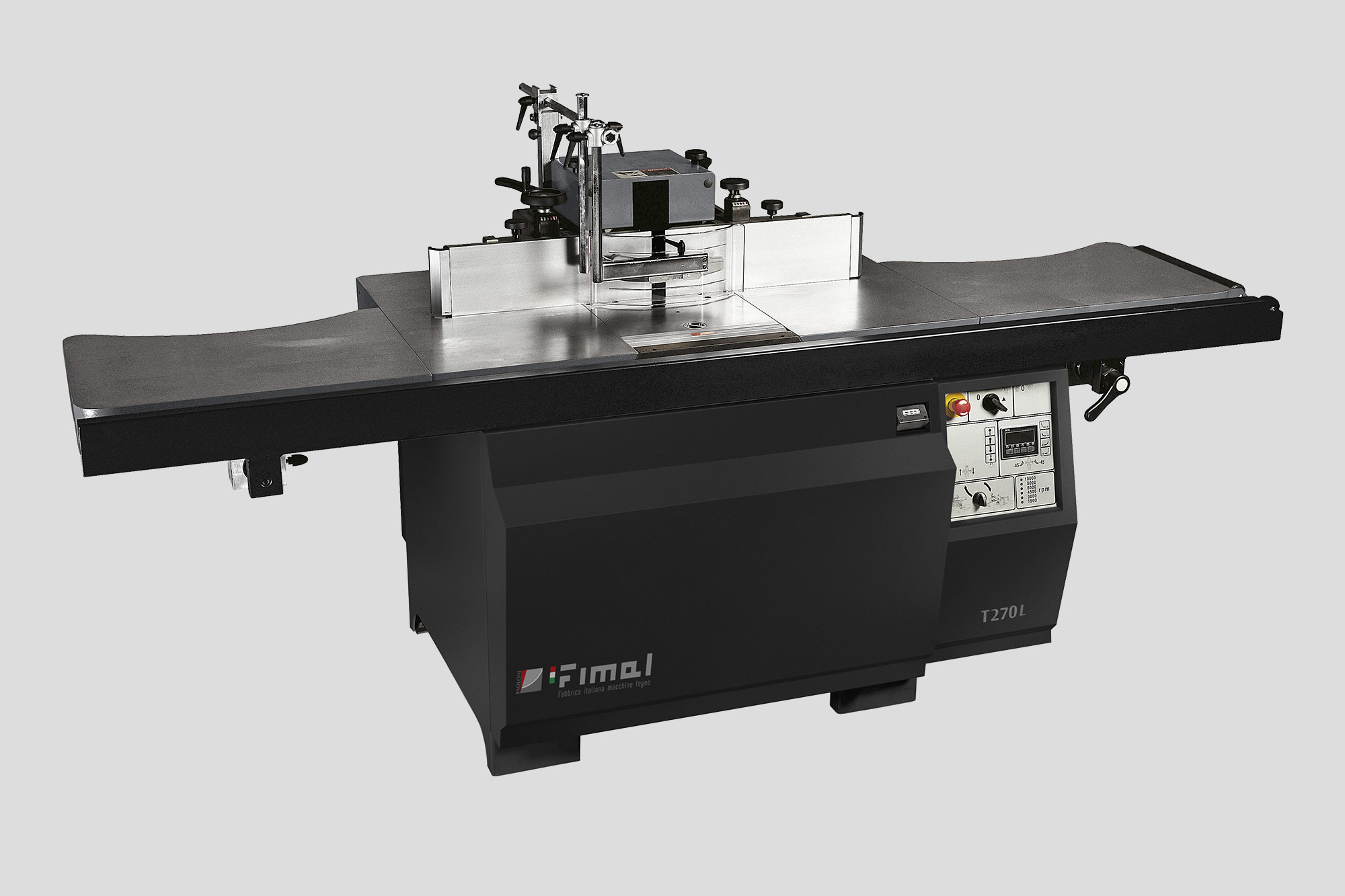

Spindle moulder T270 Fimal
Engineered for high-volume furniture production and continuous industrial profiling, this premium Heavy-Duty Spindle Moulder combines a vibration-dampening cast-iron structure with an advanced multi-axis electronic programmer.
Specifications
- Table dimensions
- 2500 x780 mm
- Carriage dimensions/stroke
- 900x370/9000 mm
- Table height
- 900 mm
- Max. spindle height
- 270 mm
- Spindle speed
- 3000 / 4500 / 6000 / 8000 / 10000 G/min
- Motor power
- 5,5 -7,5 kw
- Weight
- 890 kg
Description
Designed to meet the demanding requirements of industrial furniture plants and high-end artisanal shops, this machine eliminates trial-and-error setups, delivering absolute decimal accuracy from the very first cut.

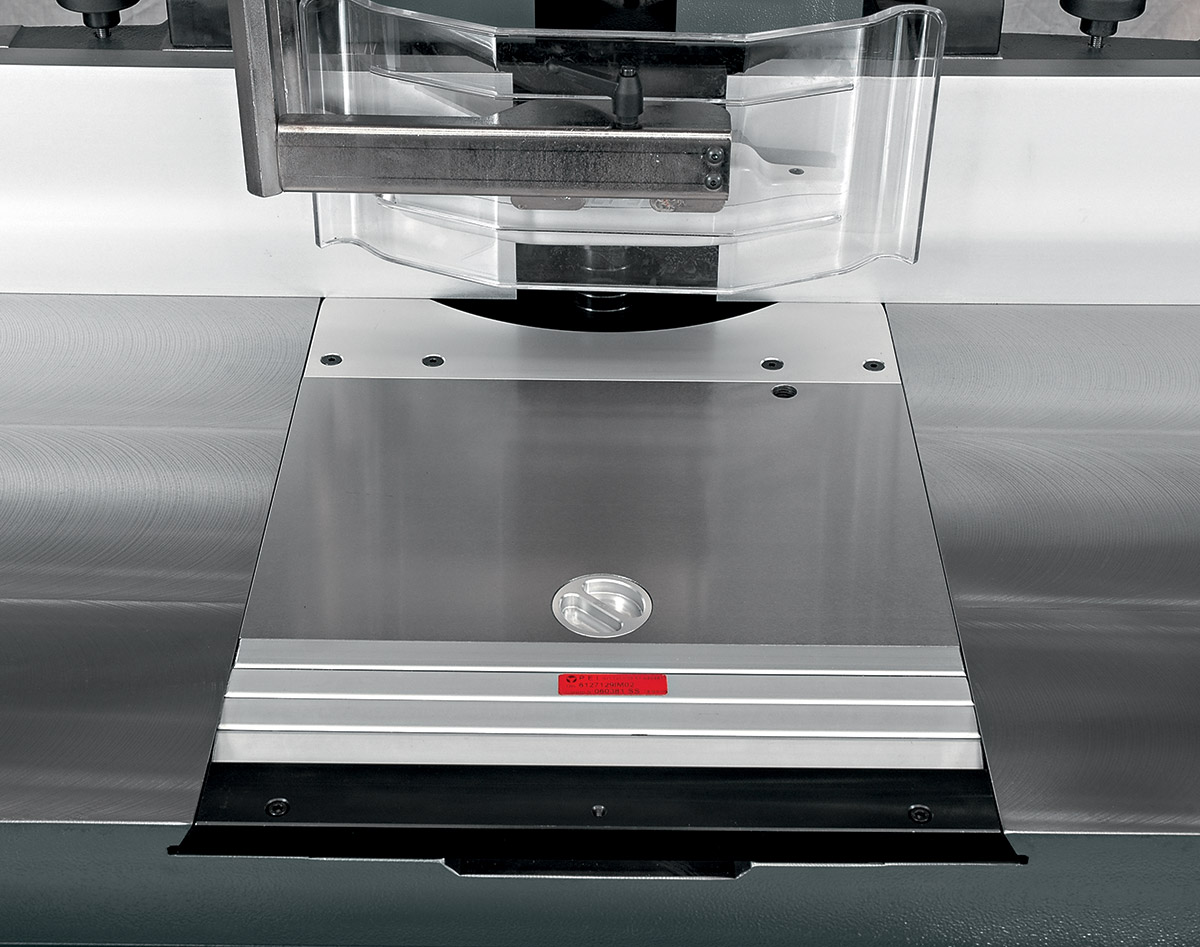

The core structure is anchored by a massive, vibration-absorbing cast-iron worktable that guarantees smooth material feeding and strict planarity. Operators can rapidly execute complex profiling, tenoning, and edge-shaping tasks thanks to advanced electronic controls. Available in configurations with either a fixed or a high-rigidity tilting shaft, this system easily handles large-diameter cutter heads and heavy mechanical loads without losing rotational stability.
Key Technical & Structural Advantages:
•Multi-Axis Electronic Programmer: Allows digital storage and automated adjustment of spindle height and fence positions, drastically cutting down changeover times.
• Inverter Variable Speed Drive: Enables precise electronic selection of cutter speeds to match the exact diameter of the tool and the density of the wood grain, preventing material burning
• Integrated Pneumatic Clamping: Equipped with a dual-cylinder pneumatic arm that secures large wooden components or tenoning templates firmly against the table.

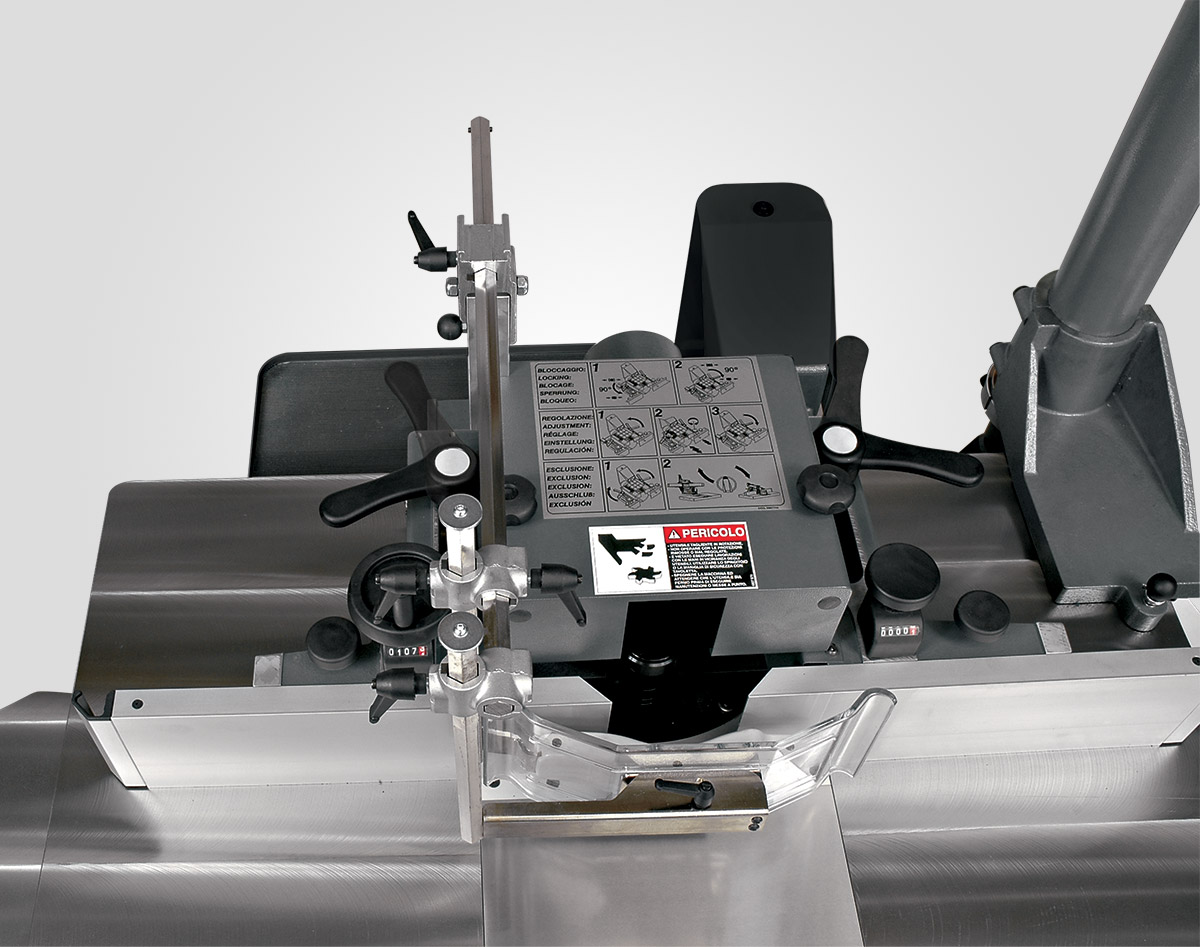

• Hermetic Aluminum Fence Plates: Precision-machined coplanar aluminum guides provide a seamless support surface, ensuring consistent depth of cut across the entire workpiece length.
• Industrial Automated Feeder Ready: Built to seamlessly synchronize with heavy-duty 6-roller automatic material feeders for safer, hands-free production runs.
Technical Configurations & Options:
•Heavy-duty high-torque main motor with automated star-delta starting.
•Integrated bi-directional spindle rotation switch for clockwise and counterclockwise cutting.
•Overhead suspended control panel layout for enhanced operator ergonomics and line-of-sight monitoring.
•Optional integrated upper timber strip recovery device for high-yield window and door manufacturing
Frequently asked questions
What warranty is available for Spindle moulder T270?
Warranty availability for Spindle moulder T270 is confirmed in the individual commercial offer. The exact coverage and conditions depend on the machine, its configuration and whether it is new or used. Contact ProMach Machinery for the current warranty terms applicable to this specific unit before ordering.
What is the delivery time for Spindle moulder T270?
Contact us for the current lead time for Spindle moulder T270. Delivery timing depends on machine availability, final configuration, destination and transport requirements. ProMach Machinery coordinates delivery and installation planning with the customer, and the confirmed schedule is stated in the individual commercial offer.
Are installation, commissioning and operator training available for Spindle moulder T270?
Yes, installation, commissioning and operator training are available for Spindle moulder T270, subject to the agreed project scope. The ProMach team can coordinate positioning, mechanical and electrical assembly, calibration, production tests and initial operator training so the machine is handed over ready for safe operation.
Are spare parts, service and technical support available for Spindle moulder T270?
Yes, ProMach Machinery provides spare parts, service and technical support for the machines it sells. Support for Spindle moulder T270 can include preventive maintenance, diagnostics, repairs, wear components, compatible or original parts and sub-assemblies, according to the machine and the agreed service scope.
Is Spindle moulder T270 suitable for my materials and production requirements?
Suitability must be confirmed against your material, product and required output. For Spindle moulder T270, review the published specifications, including Table dimensions: 2500 x780 mm; Carriage dimensions/stroke: 900x370/9000 mm, then send ProMach Machinery your material details, dimensions, target capacity and process requirements. The team will verify the configuration before preparing an offer.
