Combined machine 5 operations C 400
The C 400 is an industrial-grade, heavy-duty 5-in-1 combination woodworking machine designed to provide an expansive, high-volume production workspace within a unified chassis.
Specifications
- No of operations
- 5 pcs
- Working planer width
- 400 mm
- Woking planer length
- 1800 mm
- Working planer height
- 220 mm
- Cutterblock diameter
- 70 mm
- No. of knives
- 3 pcs
- Sliding table length
- 2200 mm
- Tilting blade
- Yes 0°-45°
- Saw cutting height
- 95 mm
- Saw blade diameter
- 300 mm
- Shaper spindle diameter
- 30 mm
- Spindle shaper length
- 105 mm
- Motor
- 3x3(4) kw
Showcase video
The C 400 is an industrial-grade, heavy-duty 5-in-1 combination woodworking machine designed to provide an expansive, high-volume production workspace…
Description
The C 400 is engineered as a heavy-duty, maximum-capacity universal woodworking center tailored for professional workshops that require industrial sizing capabilities but want to optimize floor space. The entire machine structure relies on extra-wide, precision-ground grey cast-iron tables that provide massive dead weight to absorb intense operational vibrations and guarantee absolute flatness. For panel processing, the unit features an extended, professional-grade aluminum sliding table carriage that glides effortlessly on hardened steel guidance tracks. The machine ergonomics are designed for high-efficiency workflows: the dual surface planing tables feature an assisted opening mechanism, lifting up together out of the way to grant immediate, unrestricted access to the thicknessing and mortising functions.
Key Advantages:
•Extended 400 mm Planing Capacity: The wide cutterblock allows operators to plane and flatten wide panels and structural timbers that typical combination units cannot accommodate.
•Heavy-Duty 5-in-1 Space Efficiency: Delivers the exact capabilities of five separate industrial machines while dramatically reducing the required workshop floor footprint.
•Three Dedicated High-Torque Motors: Independent power distribution ensures optimal operational speeds for each station, eliminating belt shifts and maximizing motor life.
•Massive Vibration-Dampening Cast Iron: Heavy-duty, precision-milled grey cast-iron beds provide a rock-solid reference plane for precision cutting and zero-tolerance milling.

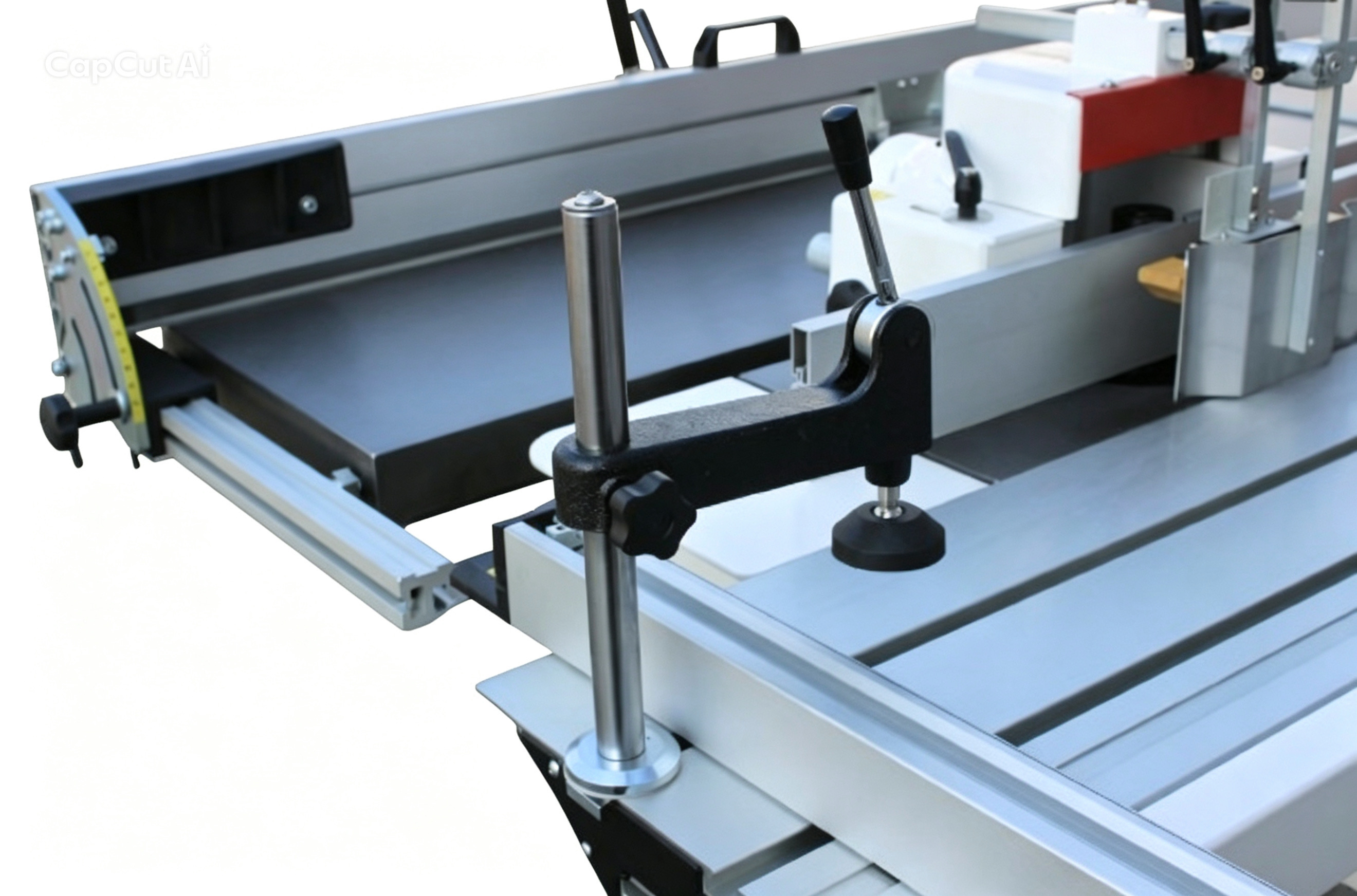

•Industrial Sliding Carriage System: The oversized anodized aluminum sliding table easily carries large panels and heavy solid wood slabs with smooth, linear accuracy.
•Assisted Multi-Table Conversion: Planing beds tilt out of the way smoothly, drastically lowering changeover times between surface planing and thicknessing.
Frequently asked questions
What warranty is available for Combined machine 5 operations C 400?
Warranty availability for Combined machine 5 operations C 400 is confirmed in the individual commercial offer. The exact coverage and conditions depend on the machine, its configuration and whether it is new or used. Contact ProMach Machinery for the current warranty terms applicable to this specific unit before ordering.
What is the delivery time for Combined machine 5 operations C 400?
Contact us for the current lead time for Combined machine 5 operations C 400. Delivery timing depends on machine availability, final configuration, destination and transport requirements. ProMach Machinery coordinates delivery and installation planning with the customer, and the confirmed schedule is stated in the individual commercial offer.
Are installation, commissioning and operator training available for Combined machine 5 operations C 400?
Yes, installation, commissioning and operator training are available for Combined machine 5 operations C 400, subject to the agreed project scope. The ProMach team can coordinate positioning, mechanical and electrical assembly, calibration, production tests and initial operator training so the machine is handed over ready for safe operation.
Are spare parts, service and technical support available for Combined machine 5 operations C 400?
Yes, ProMach Machinery provides spare parts, service and technical support for the machines it sells. Support for Combined machine 5 operations C 400 can include preventive maintenance, diagnostics, repairs, wear components, compatible or original parts and sub-assemblies, according to the machine and the agreed service scope.
Is Combined machine 5 operations C 400 suitable for my materials and production requirements?
Suitability must be confirmed against your material, product and required output. For Combined machine 5 operations C 400, review the published specifications, including No of operations: 5 pcs; Working planer width: 400 mm, then send ProMach Machinery your material details, dimensions, target capacity and process requirements. The team will verify the configuration before preparing an offer.
