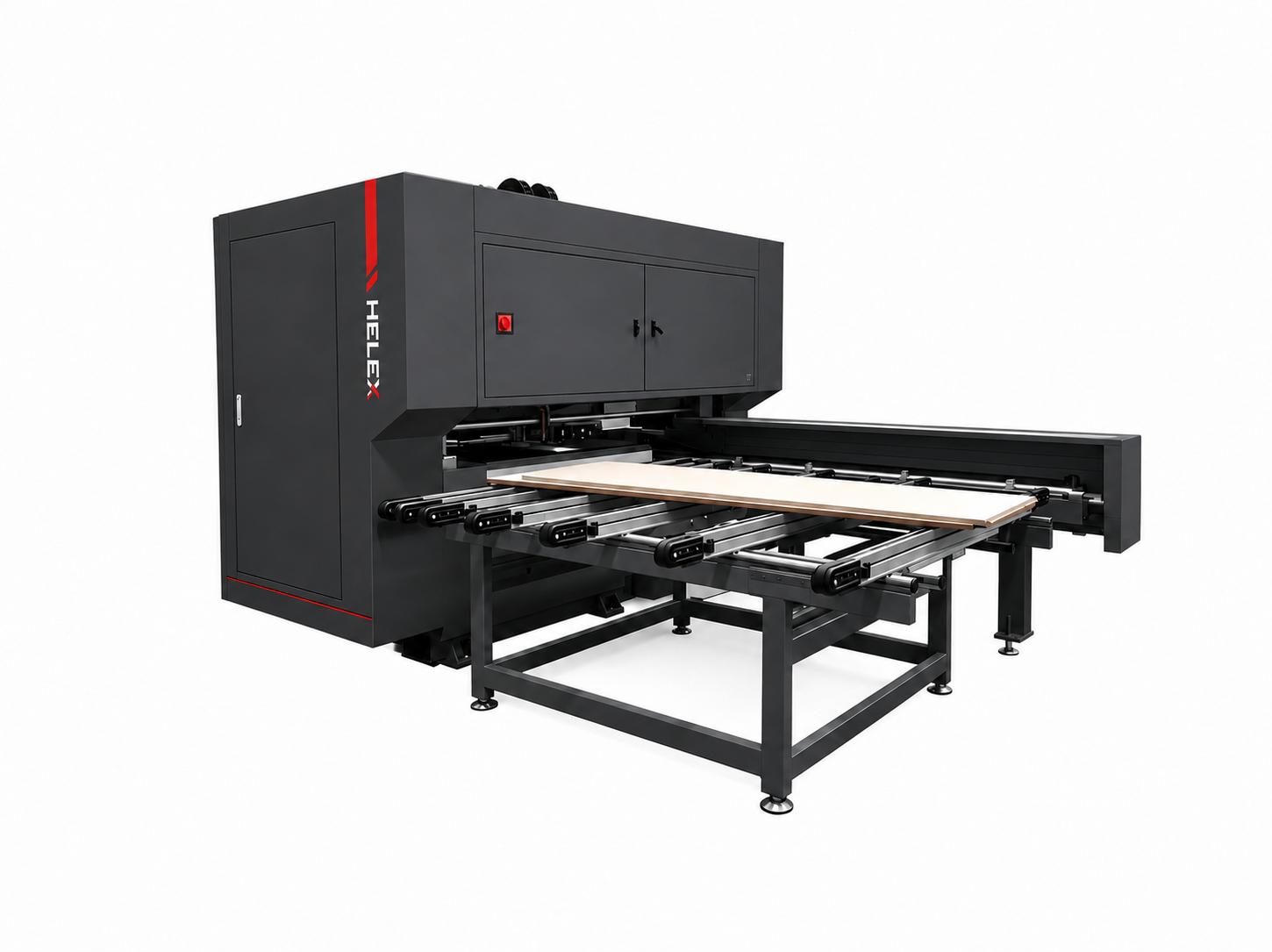

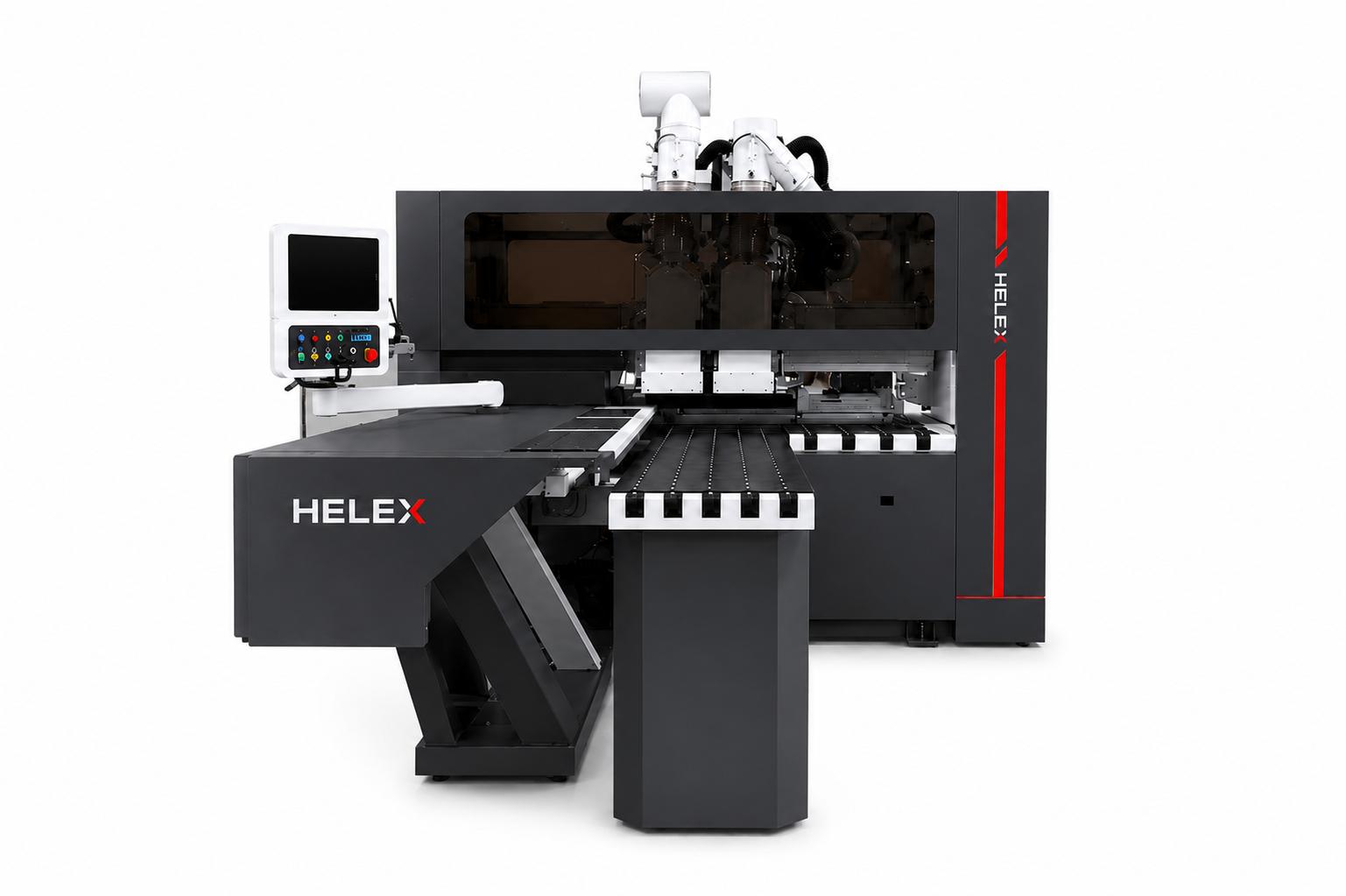

CNC Drilling machine HE1200 D6 Helex
This Six-Sided CNC Drilling Centre is a high-speed, heavy-duty boring and routing machine engineered for mass production in the panel furniture industry.
Specifications
- Working width
- 1200 mm
- Working height
- 50 mm

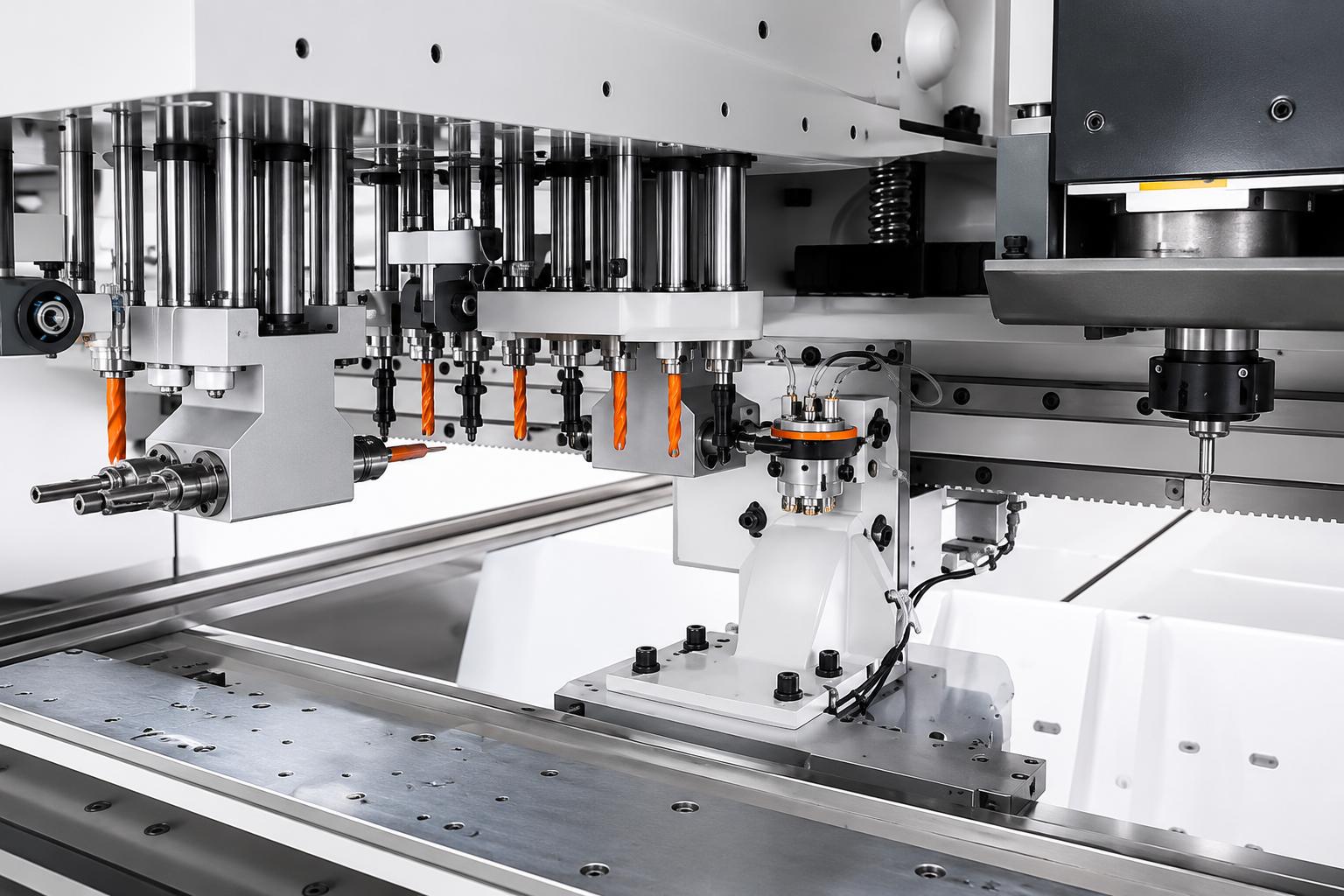

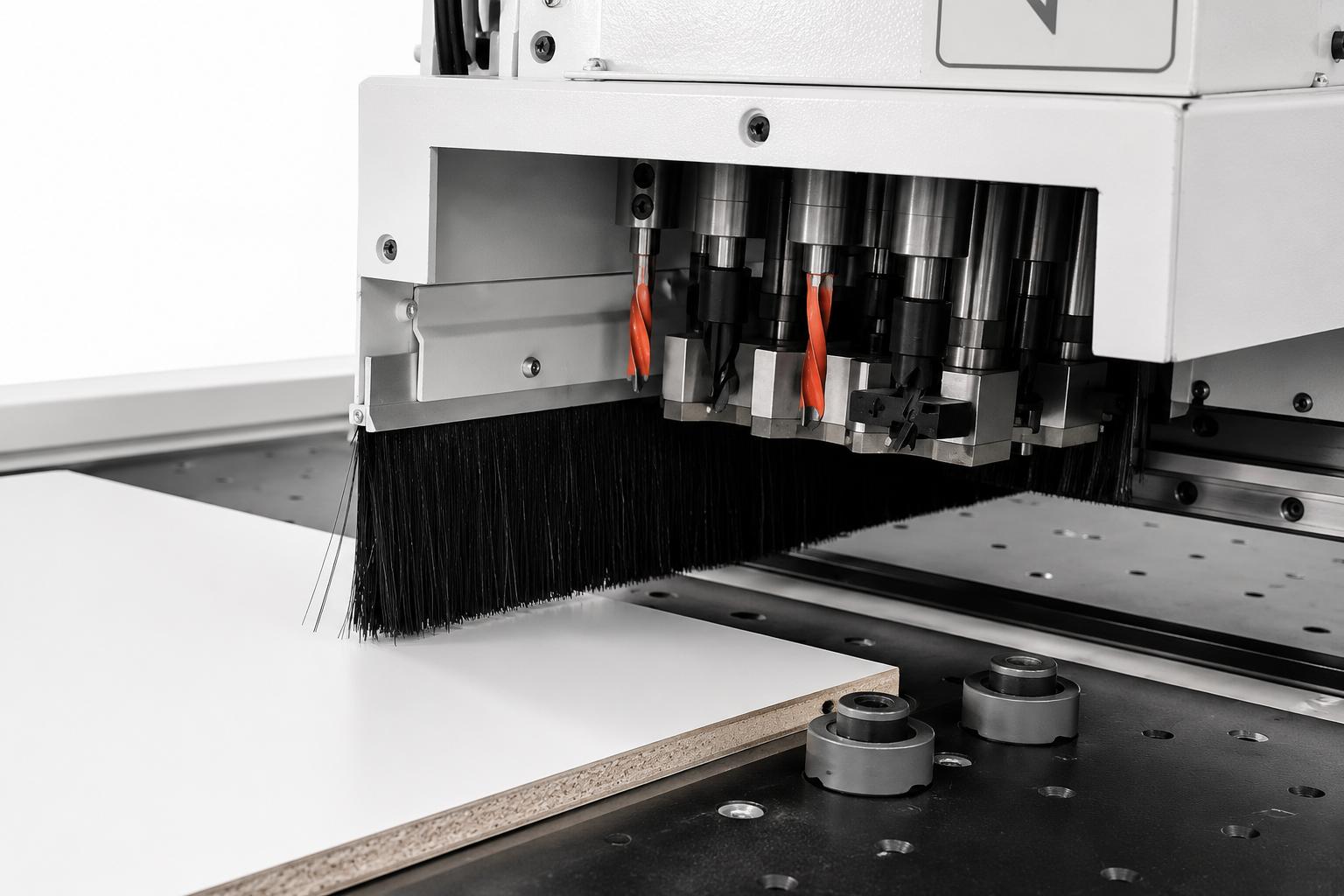

- Upper drilling unit
- 12+8 pcs
- Lower drilling unit
- 9
- Milling unit power
- 6,5+3,5 kw
- Weight
- 4000 kg

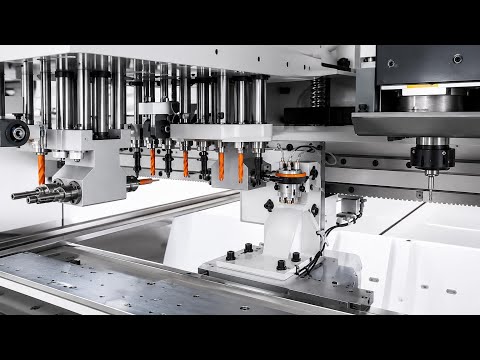

Showcase video
This Six-Sided CNC Drilling Centre is a high-speed, heavy-duty boring and routing machine engineered for mass production in the panel furniture industry.
Description
The 6-Side CNC Drilling and Milling Machine is a high-performance, automated processing center engineered for precision and efficiency. Designed to perform multi-sided operations on workpieces in a single continuous cycle, this machine eliminates the need for manual repositioning or flipping. It is an essential asset for modern manufacturing and furniture production, ensuring maximum productivity and flawless dimensional accuracy. Processing Capabilities: Vertical/horizontal drilling, routing, and slotting. Drill Spindles: Equipped with upper and lower drilling units for simultaneous top and bottom processing. Control System: Industrial-grade CNC controller for dynamic positioning and fast acceleration algorithms.
Key Benefits:
•True Six-Sided Execution: Drills top, bottom, and all four edge faces simultaneously, drastically shortening cycle times compared to classic through-feed boring machines.

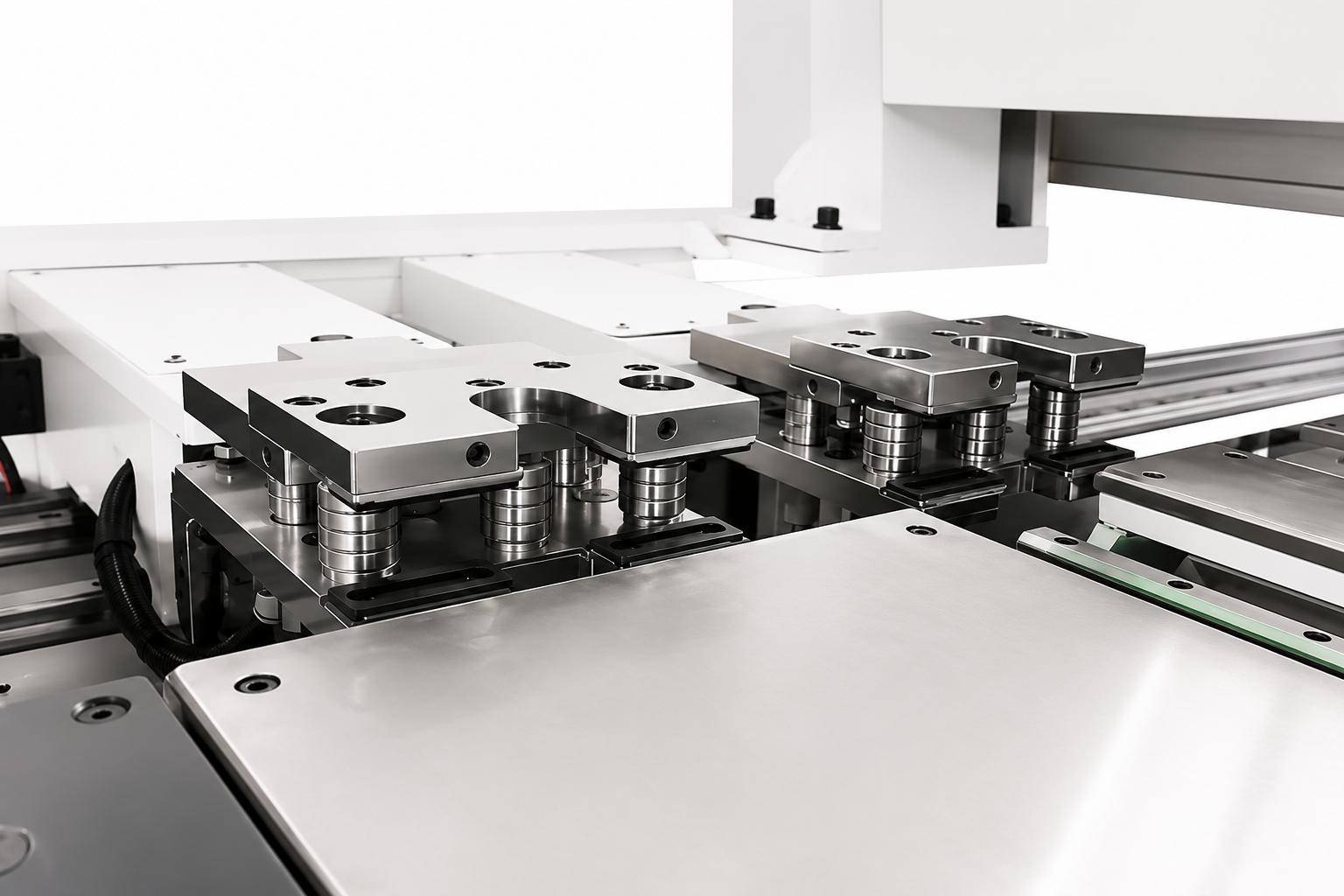

•No Panel Flipping Required: The double gripper configuration handles the material dynamically, preserving delicate melamine or lacquered surfaces from scratches and alignment errors.
•Barcoded Workflow Automation: Features an integrated barcode scanner gun; the machine instantly reads the label, pulls the correct CAD/CAM file, and adjusts drill points automatically.

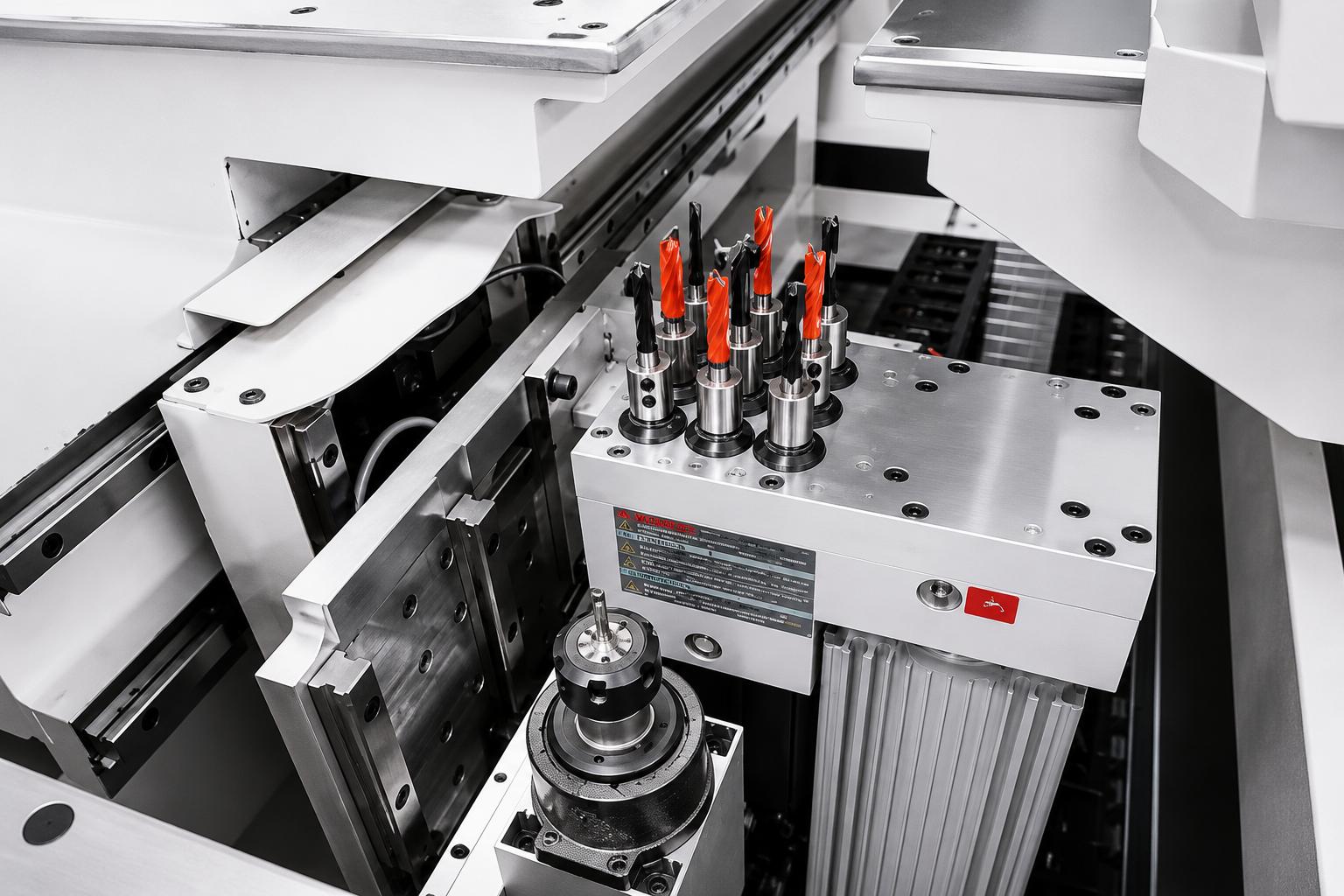

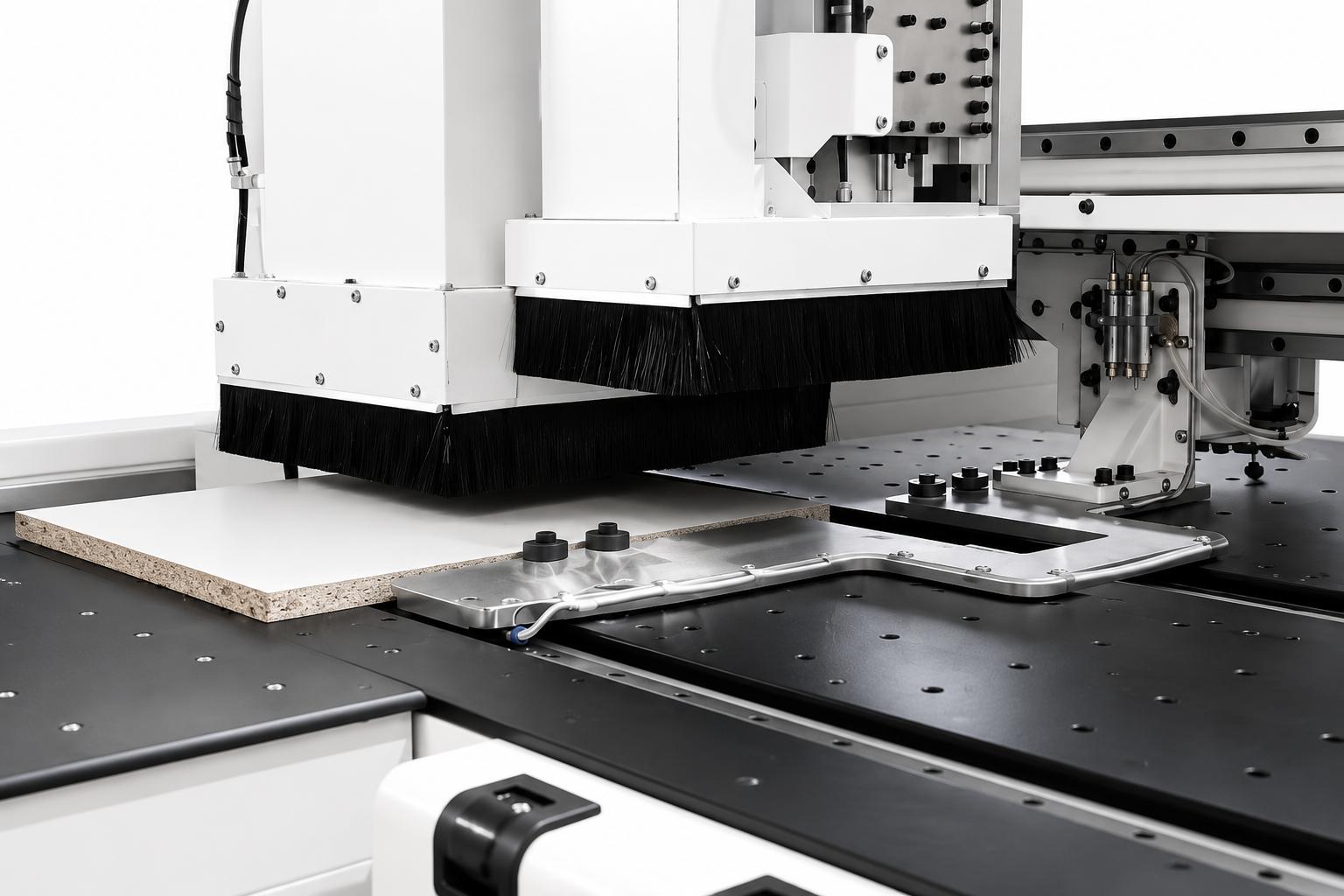

•Integrated Grooving & Milling: Outfitted with robust independent milling spindles to complete panel slots and pocket routings in the same cycle.
•Heavy Gantry Architecture: Built with a vibration-dampening, stress-relieved steel frame that supports high feed speeds while guaranteeing continuous accuracy under 24/7 workloads.
Frequently asked questions
What warranty is available for CNC Drilling machine HE1200 D6?
Warranty availability for CNC Drilling machine HE1200 D6 is confirmed in the individual commercial offer. The exact coverage and conditions depend on the machine, its configuration and whether it is new or used. Contact ProMach Machinery for the current warranty terms applicable to this specific unit before ordering.
What is the delivery time for CNC Drilling machine HE1200 D6?
Contact us for the current lead time for CNC Drilling machine HE1200 D6. Delivery timing depends on machine availability, final configuration, destination and transport requirements. ProMach Machinery coordinates delivery and installation planning with the customer, and the confirmed schedule is stated in the individual commercial offer.
Are installation, commissioning and operator training available for CNC Drilling machine HE1200 D6?
Yes, installation, commissioning and operator training are available for CNC Drilling machine HE1200 D6, subject to the agreed project scope. The ProMach team can coordinate positioning, mechanical and electrical assembly, calibration, production tests and initial operator training so the machine is handed over ready for safe operation.
Are spare parts, service and technical support available for CNC Drilling machine HE1200 D6?
Yes, ProMach Machinery provides spare parts, service and technical support for the machines it sells. Support for CNC Drilling machine HE1200 D6 can include preventive maintenance, diagnostics, repairs, wear components, compatible or original parts and sub-assemblies, according to the machine and the agreed service scope.
Is CNC Drilling machine HE1200 D6 suitable for my materials and production requirements?
Suitability must be confirmed against your material, product and required output. For CNC Drilling machine HE1200 D6, review the published specifications, including Working width: 1200 mm; Working height: 50 mm, then send ProMach Machinery your material details, dimensions, target capacity and process requirements. The team will verify the configuration before preparing an offer.
