Brush sanding machine YZM 1300 Ka•ma
YZM 1300 is a next-generation smart automatic surface sanding machine designed for the high-precision processing of raw and primed furniture panels.
Specifications
- Working width
- 150-1300 mm
- Working height
- 3-165 mm
- No. of aggregates
- 9 pcs
- Feeding speed
- 11 m/min
- Motor power
- 38,5 kw
- Weight
- 5720 kg
- Dimensions
- 6140x2330x2350 mm
Showcase video
YZM 1300 is a next-generation smart automatic surface sanding machine designed for the high-precision processing of raw and primed furniture panels.
Description
Take your surface finishing to a flawless, robotic level with the industrial YZM 1300 automatic sanding machine . Built for 24/7 continuous duty in modular furniture and door manufacturing , this smart sander completely replaces manual sanding errors. Featuring an intelligent "Learning Mode" driven by an industrial PC, it scans incoming parts instantly via high-speed cameras, calculating the most efficient orbital paths and automatically matching uneven panel tolerances.
Key Benefits:
•AI-Powered "KaVision" Scanning: Built-in cameras automatically scan part profiles as they enter, allowing the artificial intelligence to assign specialized tasks to separate work stations.

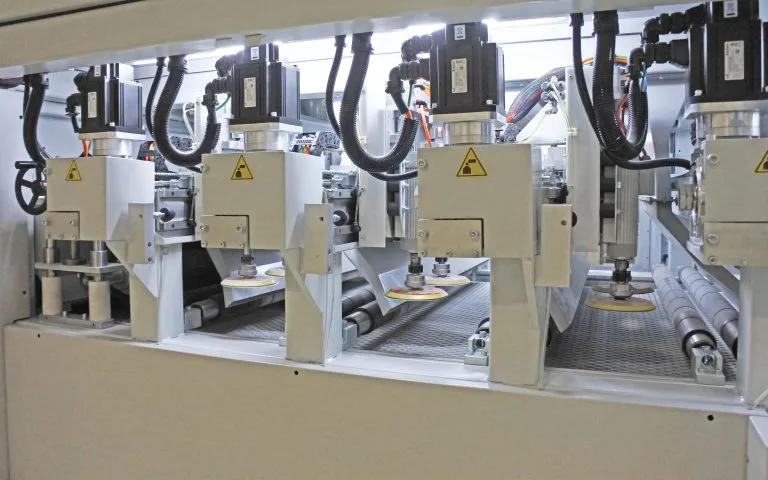

•4-Arm Robotic Sanding: Equipped with 4 servo-controlled robotic arms running at 12,000 RPM with a sensitive 150g pressure control, ensuring perfect uniformity even on 3D carved areas without sanding through the edges.
•9 Oscillating Disc Brushes: Features a secondary station with 9 oscillating disc brush sanders that automatically adjust their height and rotational direction for complete wood fiber removal.
•Uneven Panel Tolerance: Capable of perfectly leveling out wavy or warped panels with variations up to 3 mm, lifting the wood dust continuously to prevent grain scratch marks.
MOVABLE AIR JET UNIT FOR DUST REMOVAL
This equipment cleans the sanding dust from the product before it exits the machine. MOVABLE CONVEYOR TABLE
The conveyor is adjustable in height and can be automatically set according to the desired part thickness with 1 mm precision, via the touch screen. The maximum operating speed is 8m/min. NONWOVEN FLAP CYLINDER
This unit removes sanding traces on products that have finished the sanding process, ensuring a smooth surface. AUTOMATIC LUBRICATION SYSTEM
This system ensures a smooth and long-lasting operation of the reciprocating arms by automatically lubricating the lineer bearings and guides. OPTIONAL FEATURES
MOVABLE AIR JET UNIT FOR DUST REMOVAL
This equipment cleans the sanding dust from the product before it exits the machine. MOVABLE CONVEYOR TABLE
The conveyor is adjustable in height and can be automatically set according to the desired part thickness with 1 mm precision, via the touch screen. The maximum operating speed is 8m/min. NONWOVEN FLAP CYLINDER
This unit removes sanding traces on products that have finished the sanding process, ensuring a smooth surface. AUTOMATIC LUBRICATION SYSTEM
This system ensures a smooth and long-lasting operation of the reciprocating arms by automatically lubricating the lineer bearings and guides. OPTIONAL FEATURES

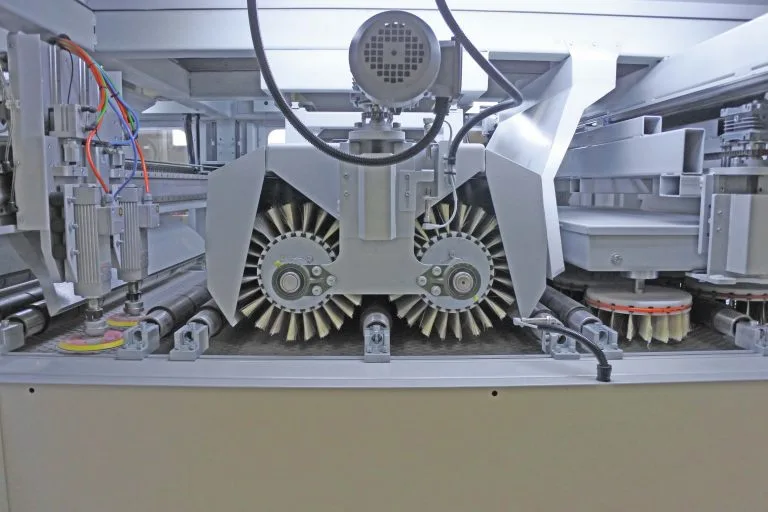

CROSS BRUSH SYSTEM
Working horizontally in the direction of travel, it reduces sanding marks. It allows detailed sanding of parts in the 2nd and 3rd axes of rustic and CNC-processed products. It consists of 2 units and 4 brushes in total.
Frequently asked questions
What warranty is available for Brush sanding machine YZM 1300?
Warranty availability for Brush sanding machine YZM 1300 is confirmed in the individual commercial offer. The exact coverage and conditions depend on the machine, its configuration and whether it is new or used. Contact ProMach Machinery for the current warranty terms applicable to this specific unit before ordering.
What is the delivery time for Brush sanding machine YZM 1300?
Contact us for the current lead time for Brush sanding machine YZM 1300. Delivery timing depends on machine availability, final configuration, destination and transport requirements. ProMach Machinery coordinates delivery and installation planning with the customer, and the confirmed schedule is stated in the individual commercial offer.
Are installation, commissioning and operator training available for Brush sanding machine YZM 1300?
Yes, installation, commissioning and operator training are available for Brush sanding machine YZM 1300, subject to the agreed project scope. The ProMach team can coordinate positioning, mechanical and electrical assembly, calibration, production tests and initial operator training so the machine is handed over ready for safe operation.
Are spare parts, service and technical support available for Brush sanding machine YZM 1300?
Yes, ProMach Machinery provides spare parts, service and technical support for the machines it sells. Support for Brush sanding machine YZM 1300 can include preventive maintenance, diagnostics, repairs, wear components, compatible or original parts and sub-assemblies, according to the machine and the agreed service scope.
Is Brush sanding machine YZM 1300 suitable for my materials and production requirements?
Suitability must be confirmed against your material, product and required output. For Brush sanding machine YZM 1300, review the published specifications, including Working width: 150-1300 mm; Working height: 3-165 mm, then send ProMach Machinery your material details, dimensions, target capacity and process requirements. The team will verify the configuration before preparing an offer.
