Automatic spray machine Cevval Ka•ma
Cevval K is a next-generation automatic reciprocating spray machine engineered for high-quality paint and lacquer finishing on all types of panel materials.
Specifications
- Working width
- 50-1300 mm
- Working height
- 3-100 mm
- Speed
- 8 m/min
- Min. working length
- 300 mm
- Power
- 13 kw
- Aspiration flow rate
- 12.000 m³/h
- Arm speed
- 150 m/min
- Air pressure
- 7 bar
- Dimensions
- 5400x5250x2650 mm
- Weight
- 4500 kg
Showcase video
Cevval K is a next-generation automatic reciprocating spray machine engineered for high-quality paint and lacquer finishing on all types of panel materials.
Description

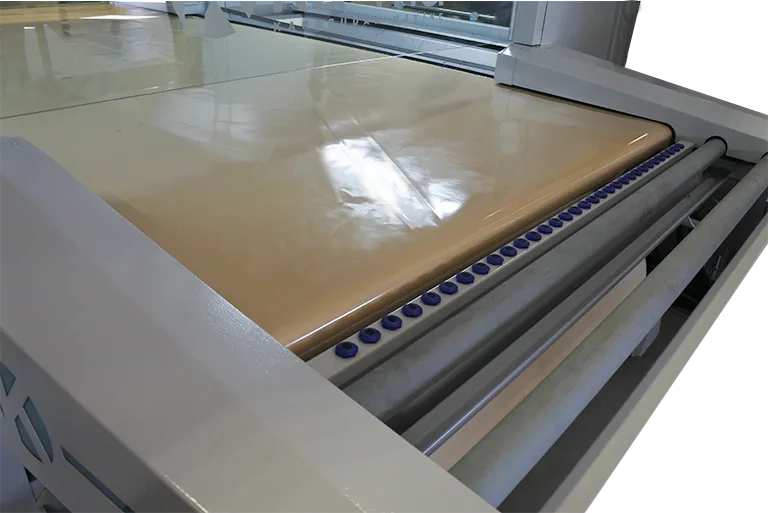

Designed for continuous industrial workloads, this advanced cabin handles water-based, solvent-based, polyurethane, and UV coatings easily. By utilizing an intelligent 32-sensor reading barrier under the feed rollers, the system maps the exact shape of each panel or piece of wood with millimetric precision, triggering the spray guns only when material is present to reduce overspray and chemical waste.
Key Benefits:

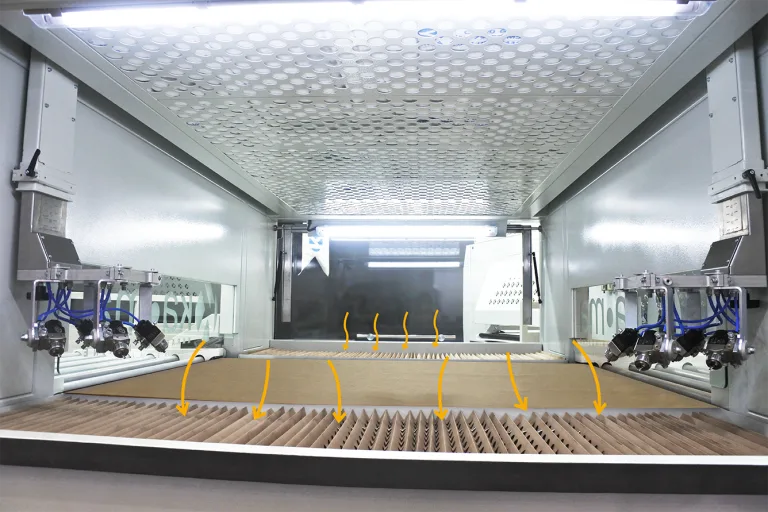

• Dual-Arm Servo Precision: Two independent, servo-driven reciprocating arms glide smoothly on twin linear rails at high speeds up to 150 m/min for rapid, streak-free surface coverage.
• Millimetric Product Mating: A precision scanning barrier reads panel dimensions instantly, enabling perfect edge and surface coating without manual adjustments.

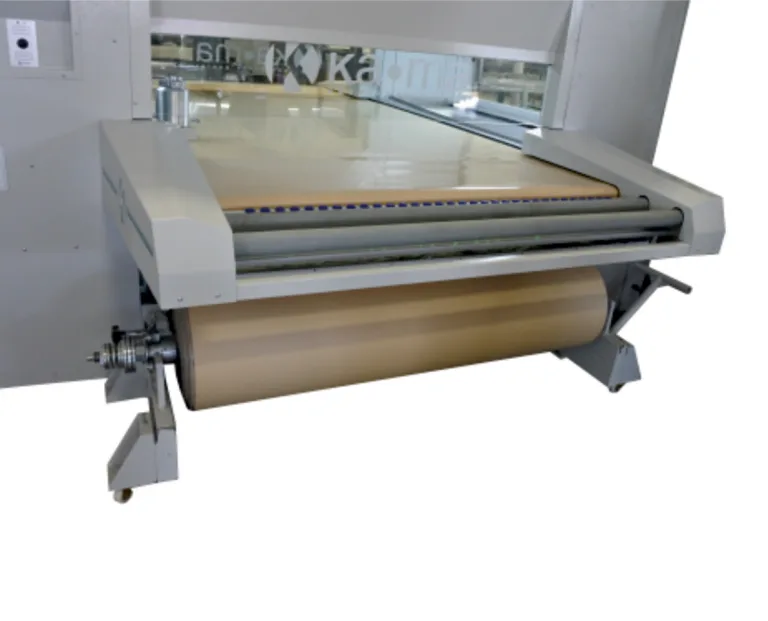

• Eco-Friendly Paper Conveyor System: Features a continuously tensioned paper belt conveyor line that collects overspray, preventing hazardous chemical buildup and eliminating the need for complex belt washing cycles.
• Flexible Gun Configuration: Standard setup includes 1 high-pressure pump and 4 spray guns, with pre-engineered internal plumbing ready to scale up to 8 guns and 2 pumps as your production expands.
• Advanced Touch Control: Operated via a 10-inch color touchscreen interface running intelligent PLC software to easily save custom recipes and switch coating parameters instantly.
Frequently asked questions
What warranty is available for Automatic spray machine Cevval?
Warranty availability for Automatic spray machine Cevval is confirmed in the individual commercial offer. The exact coverage and conditions depend on the machine, its configuration and whether it is new or used. Contact ProMach Machinery for the current warranty terms applicable to this specific unit before ordering.
What is the delivery time for Automatic spray machine Cevval?
Contact us for the current lead time for Automatic spray machine Cevval. Delivery timing depends on machine availability, final configuration, destination and transport requirements. ProMach Machinery coordinates delivery and installation planning with the customer, and the confirmed schedule is stated in the individual commercial offer.
Are installation, commissioning and operator training available for Automatic spray machine Cevval?
Yes, installation, commissioning and operator training are available for Automatic spray machine Cevval, subject to the agreed project scope. The ProMach team can coordinate positioning, mechanical and electrical assembly, calibration, production tests and initial operator training so the machine is handed over ready for safe operation.
Are spare parts, service and technical support available for Automatic spray machine Cevval?
Yes, ProMach Machinery provides spare parts, service and technical support for the machines it sells. Support for Automatic spray machine Cevval can include preventive maintenance, diagnostics, repairs, wear components, compatible or original parts and sub-assemblies, according to the machine and the agreed service scope.
Is Automatic spray machine Cevval suitable for my materials and production requirements?
Suitability must be confirmed against your material, product and required output. For Automatic spray machine Cevval, review the published specifications, including Working width: 50-1300 mm; Working height: 3-100 mm, then send ProMach Machinery your material details, dimensions, target capacity and process requirements. The team will verify the configuration before preparing an offer.
