Automatic edgebander Kronos Casadei Industria
Kronos 60.0 is a next-generation, high-performance automatic edgebander equipped with an advanced 10-inch figurative touchscreen.
Specifications
- Panel thickness
- 8-60 mm
- Edge thickness
- 0,4-3 mm
- Speed
- 12 m/min
- Glue pot capacity
- 1,5 Kg
- Min. panel length
- 110 Mm
- Total power
- 7 kw
- Dimensions
- 3630 x 1550 x 1300 Mm
- Weight
- 800 Kg
Showcase video
Kronos 60.0 is a next-generation, high-performance automatic edgebander equipped with an advanced 10-inch figurative touchscreen.
Description
Designed for heavy-duty woodworking, it features a heavy double-chain feeding system, an integrated diamond pre-milling unit, and a hybrid upper EVA/PUR glue pot as standard. It processes coils up to 3 mm on panels up to 60 mm high while occupying a highly optimized 3.6 meters of floor space.
Key Benefits:

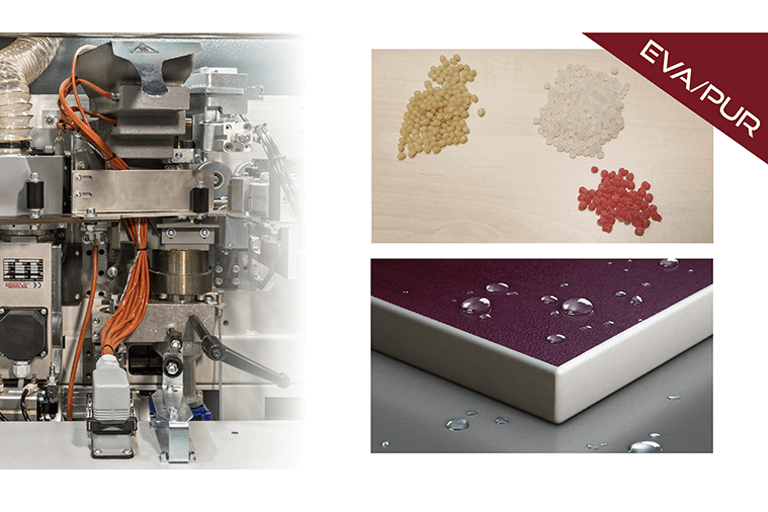

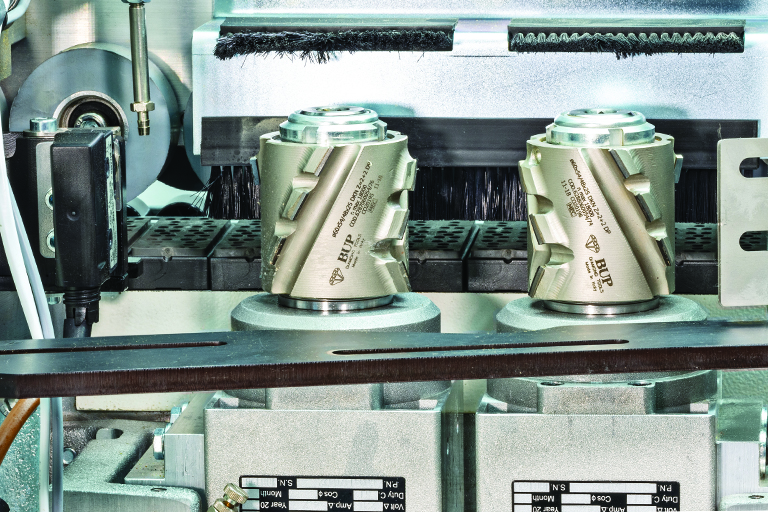

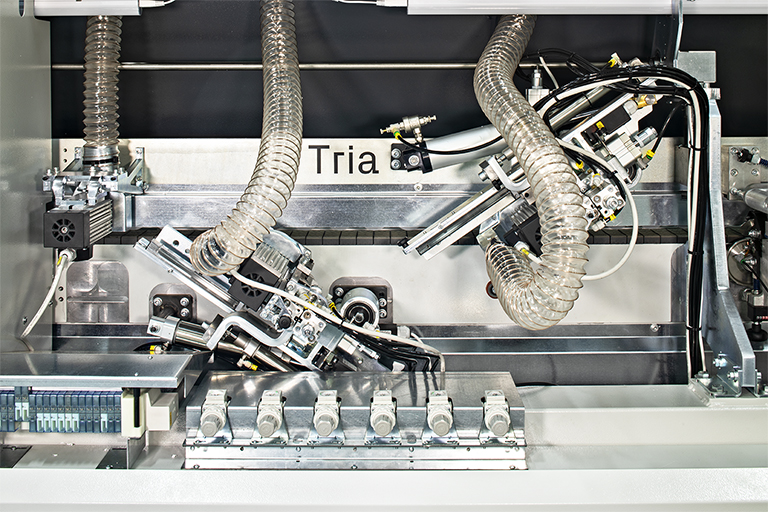

Hybrid EVA/PUR System: Upper Teflon-coated glue pot runs both EVA and PUR polyurethane adhesives, offering uniform heating and easy color or glue type changes. Ultra-Precise Material Drive: The rugged double-chain panel feeder with rubber pads ensures completely smooth, scratch-free panel tracking at 12 m/min. Pre-Milling & "TRIA" Technology: Dual diamond pre-milling cutterblocks eliminate saw defects, followed by the multi-functional TRIA unit which handles end trimming, flush trimming, and corner rounding in one space-saving zone. Expandable Layout: Engineered with 3 completely free slots at the end of the line to add your choice of finishing units (edge scraping, glue scraping, or buffing).
Frequently asked questions
What warranty is available for Automatic edgebander Kronos?
Warranty availability for Automatic edgebander Kronos is confirmed in the individual commercial offer. The exact coverage and conditions depend on the machine, its configuration and whether it is new or used. Contact ProMach Machinery for the current warranty terms applicable to this specific unit before ordering.
What is the delivery time for Automatic edgebander Kronos?
Contact us for the current lead time for Automatic edgebander Kronos. Delivery timing depends on machine availability, final configuration, destination and transport requirements. ProMach Machinery coordinates delivery and installation planning with the customer, and the confirmed schedule is stated in the individual commercial offer.
Are installation, commissioning and operator training available for Automatic edgebander Kronos?
Yes, installation, commissioning and operator training are available for Automatic edgebander Kronos, subject to the agreed project scope. The ProMach team can coordinate positioning, mechanical and electrical assembly, calibration, production tests and initial operator training so the machine is handed over ready for safe operation.
Are spare parts, service and technical support available for Automatic edgebander Kronos?
Yes, ProMach Machinery provides spare parts, service and technical support for the machines it sells. Support for Automatic edgebander Kronos can include preventive maintenance, diagnostics, repairs, wear components, compatible or original parts and sub-assemblies, according to the machine and the agreed service scope.
Is Automatic edgebander Kronos suitable for my materials and production requirements?
Suitability must be confirmed against your material, product and required output. For Automatic edgebander Kronos, review the published specifications, including Panel thickness: 8-60 mm; Edge thickness: 0,4-3 mm, then send ProMach Machinery your material details, dimensions, target capacity and process requirements. The team will verify the configuration before preparing an offer.
